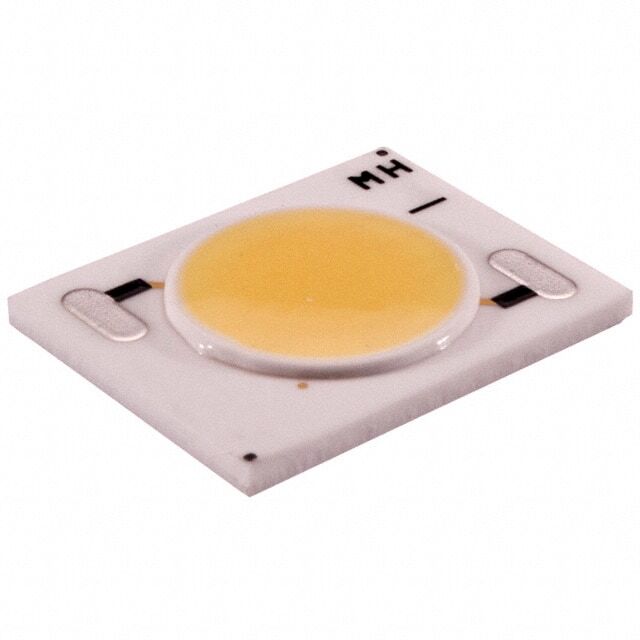

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr Sharp Microelectronics
Series Mini Zenigata
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K
Configuration Rectangle
Luminous Flux @ Current/Temperature 200lm (Typ)
Current - Test 360mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.2V
Lumens/Watt @ Current - Test 54 lm/W
Current - Max 400mA
CRI (Color Rendering Index) 81
Size / Dimension 15.00mm L x 12.00mm W
Height 1.60mm
Light Emitting Surface (LES) 7.10mm L x 7.10mm W
Lens Type Flat
Base Product Number GW5B
Standard Package 400 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 873084-GW5BTC27K00
Ultra Librarian 3D Model Ultra Librarian GW5BTC27K00 CAD Model

Description

The 873084-GW5BTC27K00 is a chip-on-board (COB) module from the Mini Zenigata series.

  • Applications: Optoelectronics
  • Category: Optoelectronics - COBs, Engines, Modules, Strips
  • Light Color: White or Warm
  • Configuration: Rectangular
  • Package: Tray
  • Standard Package: 400 pieces
  • Maximum Current: 400mA
  • Forward Voltage: 10.2V (Typ)
  • Height: 1.60mm
  • LES Size: 7.10mm x 7.10mm
  • CRI: 81
  • Product Status: Obsolete
  • MSL: 1 (Unlimited)
