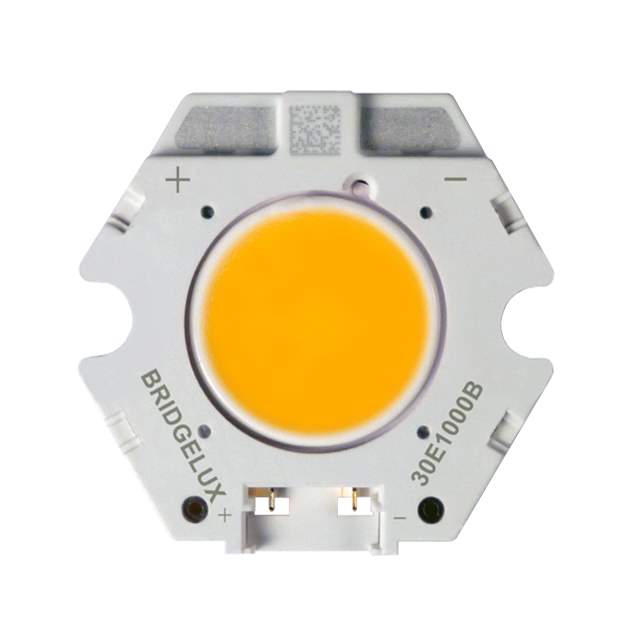

BXRC-35E1000-B-23 Real Image
Same model may have multiple batches, images only for reference.

BXRC-35E1000-B-23

Part No BXRC-35E1000-B-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 1000LM WARM WHITE COB / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Starboard
Datasheet
BXRC-35E1000-B-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series Vero® 10 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Starboard
Luminous Flux @ Current/Temperature 1257lm (Typ)
Current - Test 350mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 26.5V
Lumens/Watt @ Current - Test 136 lm/W
Current - Max 700mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features With Connector
Dimension 20.00mm Dia
Height 1.90mm
Light Emitting Surface (LES) 9.90mm Dia
Lens Type Flat
Base Product Number BXRC-35
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8539.52.0091
Other Names 976-1263
Standard Package 200
Win Source Part Number 1204087-BXRC-35E1000-B-23
Ultra Librarian 3D Model Ultra Librarian BXRC-35E1000-B-23 CAD Model

Description

The Bridgelux Vero® 10 Array is a Chip On Board (COB) type electronic component that is ideal for LED Lighting - COBs, Engines, Modules, Strips.

  • COB Configuration: Starboard
  • Lens Type: Flat
  • Viewing Angle: 120°
  • Forward Voltage (Vf): 26.5V (Typ)
  • Maximum Current: 700mA
  • CCT (K): 3500K 3-Step MacAdam Ellipse
  • Color Rendering Index (CRI): 80
  • Light Emitting Surface (LES): 9.90mm Dia
  • Dimension: 20.00mm Dia
  • Package: Tray
  • Standard Package: 200
  • Product Status: Obsolete
  • Luminous Flux: 1257lm (Typ) @ current/temperature
