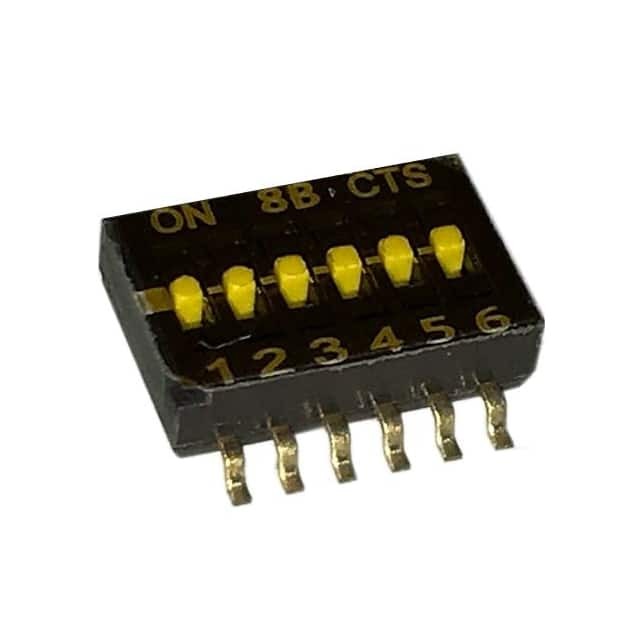

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 218
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.104" (2.65mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.346" (8.79mm)
Electrical Life 1,000 Cycles
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 905924-218-6LPSTR
Ultra Librarian 3D Model Ultra Librarian 218-6LPSTR CAD Model

Description

The 905924-218-6LPSTR is a DIP switch from CTS Electrocomponents.

  • Series: 218
  • Number of Positions: 6
  • Pitch: 0.050" (1.27mm)
  • Design: half pitch
  • Termination Style: gull wing
  • Features: epoxy sealed terminals with a tape seal
  • Contact Finish: gold
  • Contact Material: beryllium copper
  • Package Type: tape & reel
  • Standard Package Size: 2,000 pcs
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.104" (2.65mm)
  • Length: 0.346" (8.79mm)
  • Circuit: SPST
  • Actuator Type: slide
  • Electrical Life: 1,000 cycles
  • Washable: Yes
  • Mounting Type: surface mount
  • Operating Temperature Range: -55°C to 85°C
  • REACH Compliant: Yes
  • California Prop 65 Warning: Yes
