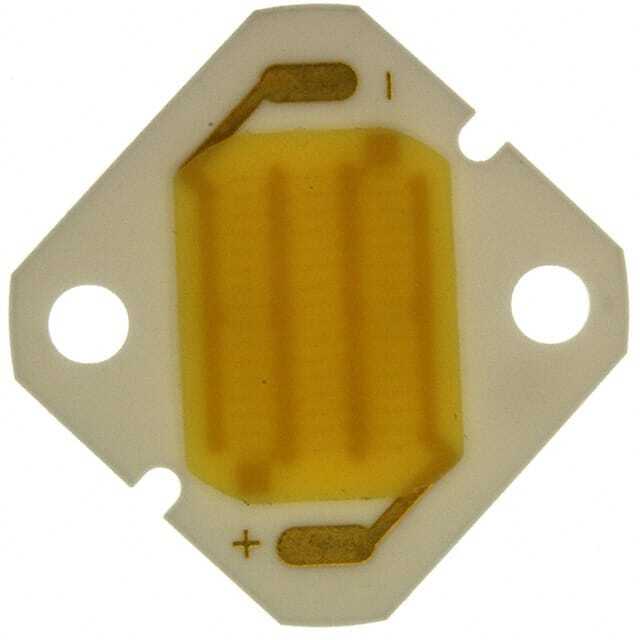

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr Sharp Microelectronics
Package Tray
Product Status Obsolete
Type LED Module
Color White, Cool
CCT (K) 5000K (4700K ~ 5300K)
Configuration Square
Luminous Flux @ Current/Temperature 350lm (Typ)
Current - Test 640mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.2V
Current - Max 700mA
Size / Dimension 18.00mm L x 18.00mm W
Height 2.00mm
Lens Type Flat
Base Product Number GW5B
Standard Package 400 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1061411-GW5BNF15L00
Ultra Librarian 3D Model Ultra Librarian GW5BNF15L00 CAD Model

Description

The 1061411-GW5BNF15L00 is a white, cool LED module from Sharp Microelectronics.

  • Shape: Square
  • Size: 18.00mm L x 18.00mm W
  • Height: 2.00mm
  • Maximum Current: 700mA
  • Forward Voltage: 10.2V
  • CCT: 5000K
  • Color Temperature: 4700K to 5300K
  • Luminous Flux (typical): 350lm
  • Package: Tray
  • Standard Package: 400 pcs
  • Status: Obsolete
