Same model may have multiple batches, images only for reference.

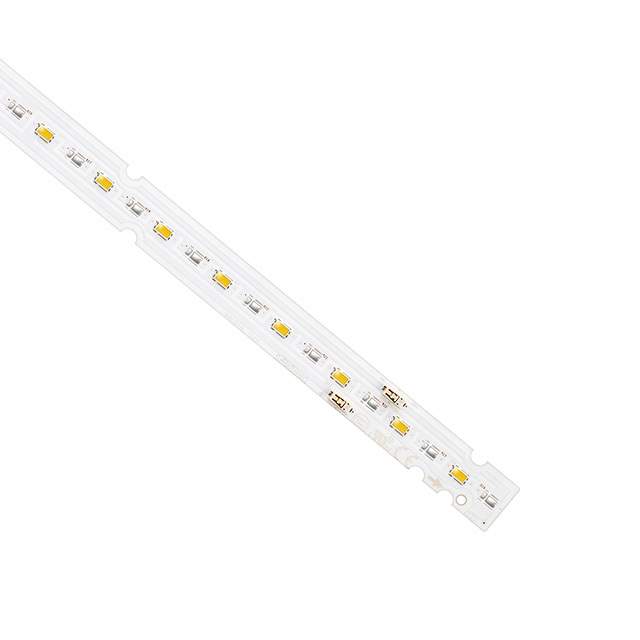

SI-B8V113560WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8V113560WW

Part No SI-B8V113560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MODULE 3000K M562A_G2 / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B8V113560WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M562A_G2
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 3000K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1580lm (Typ)
Current - Test 450mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.8V
Lumens/Watt @ Current - Test 142 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 560.00mm L x 18.00mm W
Height 4.40mm
Lens Type Flat
Other Names 1510-1321
Standard Package 280
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240435-SI-B8V113560WW
Ultra Librarian 3D Model Ultra Librarian SI-B8V113560WW CAD Model

Description

The SI-B8V113560WW is a LED lighting module manufactured by Samsung Semiconductor, Inc.

  • Series: LT-M562A_G2 series
  • Color: white, warm
  • Type: linear light strip
  • Length: 560.00mm
  • Width: 18.00mm
  • CCT: 3000K, 4-step MacAdam Ellipse
  • CRI: 80
  • Viewing Angle: 115 degrees
  • Voltage Forward: 24.8V
  • Current Max: 540mA
  • Current Test: 450mA
  • Luminous Flux: 1580lm (typ)
  • Lumens/Watt @ Current-Test: 142 lm/W
