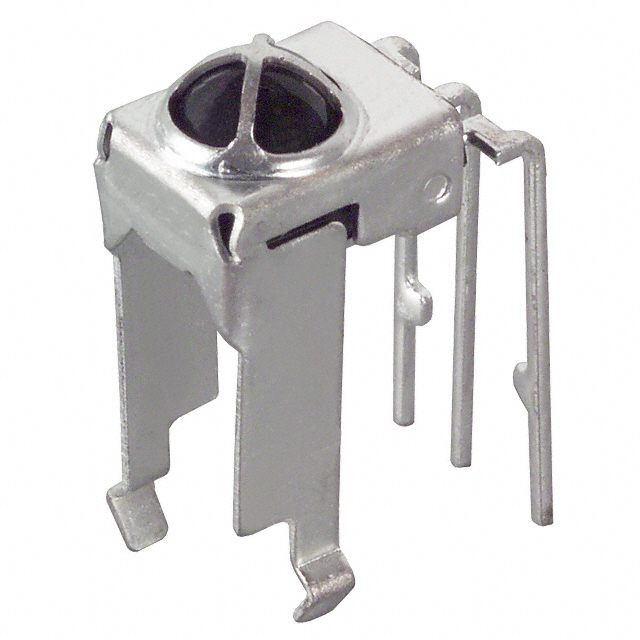

The GP1UM271RK0F is an infrared remote control receiver module manufactured by Sharp Microelectronics. It is designed to receive and demodulate infrared signals transmitted from remote controls, commonly used in various electronic devices. The module integrates a PIN photodiode and a preamplifier IC, ensuring high sensitivity and reliable performance in detecting infrared signals.

Applications

• Televisions (TVs)
• DVD Players
• Audio Systems
• Air Conditioners
• Set-Top Boxes
• Other Consumer Electronics Devices Controlled via IR Remote

Features

• Compact size for easy integration
• High sensitivity to infrared signals
• Internal filter for suppressing visible light interference
• 38 kHz carrier frequency
• Low supply voltage operation (typically 5V)
• Wide operating temperature range

Benefits

• Enables seamless remote control functionality for electronic devices.
• Reduces the impact of ambient light on signal reception.
• Simplifies circuit design with its integrated components.
• Ensures reliable performance and long lifespan.
• Allows for more compact and aesthetically pleasing product designs.

Additional Details

The GP1UM271RK0F IR receiver module requires a supply voltage of around 5V for proper operation. It is designed to detect infrared signals modulated at a carrier frequency of 38 kHz, which is a standard frequency for many remote controls. The module incorporates an internal filter to minimize the impact of visible light, ensuring reliable signal detection even in brightly lit environments. The output of the module is typically a digital signal that corresponds to the demodulated IR signal. The compact size and through-hole mounting style of the GP1UM271RK0F make it easy to integrate into a wide range of electronic devices. The module's operating temperature range allows it to function reliably in various environmental conditions. Sharp Microelectronics provides detailed datasheets and application notes to assist designers in implementing the GP1UM271RK0F into their products.
