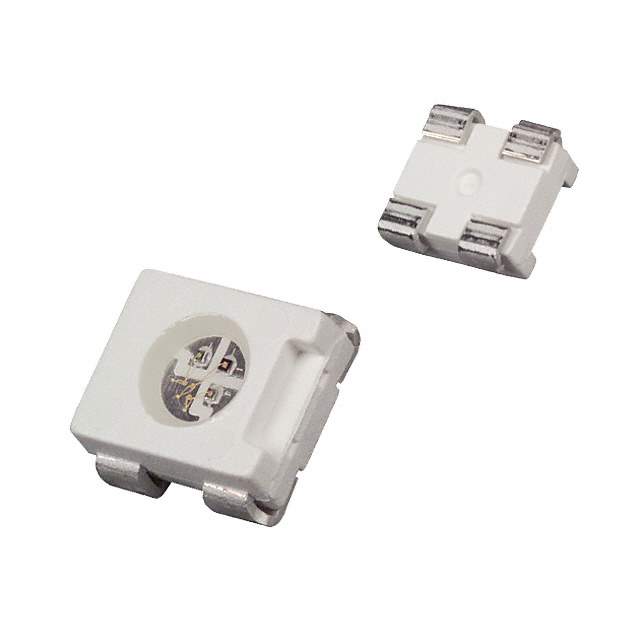

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Sharp Microelectronics
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 300mcd Red, 500mcd Green, 150mcd Blue
Lens Style Round with Flat Top
Lens Size 3.20mm Dia
Voltage - Forward (Vf) (Typ) 2V Red, 4.5V Green, 4.5V Blue
Current - Test 40mA Red, 40mA Green, 40mA Blue
Mounting SMD (SMT)
Wavelength - Dominant 635nm Red, 525nm Green, 470nm Blue
Wavelength - Peak 647nm Red, 518nm Green, 468nm Blue
Package / Case 4-SMD, J-Lead
Supplier Device Package Chip LED
Dimension 6.00mm L x 5.00mm W
Height (Max) 2.40mm
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 425-1816-2,425-1816-1
Standard Package 800
Win Source Part Number 1158917-GM5WA02200A
Ultra Librarian 3D Model Ultra Librarian GM5WA02200A CAD Model

Description

The 1158917-GM5WA02200A LED indication electronic component is a part of the optoelectronics category and has a package of tape & reel (TR), cut tape (CT) with a standard package of 800.

  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Standard Package: 800
  • Configuration: Common Anode
  • Viewing Angle: Not specified
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 300mcd Red, 500mcd Green, and 150mcd Blue
  • Voltage - Forward (Vf) (Typ): 2V Red, 4.5V Green, and 4.5V Blue
  • Current-Test: 40mA Red, 40mA Green, and 40mA Blue
  • Wavelength - Dominant: 635nm Red, 525nm Green, and 470nm Blue
  • Wavelength - Peak: 647nm Red, 518nm Green, and 468nm Blue
  • Height (Max): 2.40mm
  • Package/Case: 4-SMD, J-lead
  • Supplier Device Package: Chip LED
  • Dimension: 6.00mm L x 5.00mm W
  • Lens Style: Round with a flat top
  • Lens Size: 3.20mm Dia
  • MSL Level: 3 (168 Hours)
  • Product Status: Obsolete
