Same model may have multiple batches, images only for reference.

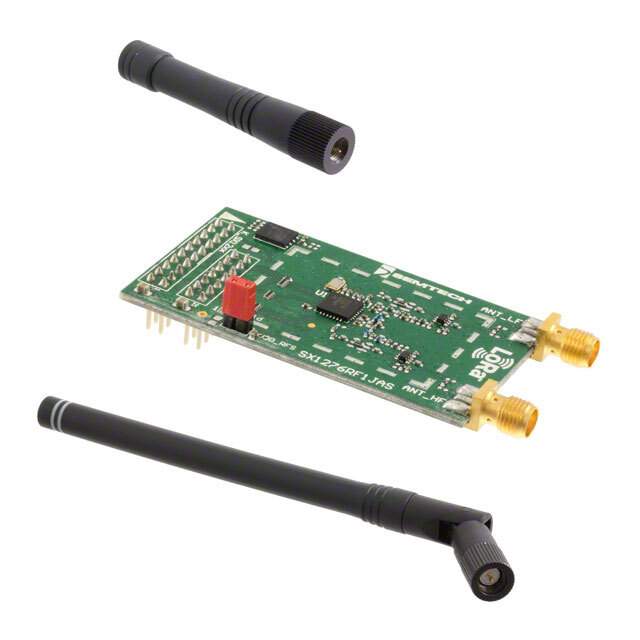

SX1276RF1JAS

Name: SX1276RF1JAS
Brand: Semtech Corporation
SKU: 1235684
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SX1276RF1JAS
Manufacturer	Semtech Corporation
Catalog	RF Transceiver Modules
Description	RX TXRX MOD ISM < 1GHZ U.FL TH / General ISM < 1GHz Transceiver Module 137MHz ~ 1.02GHz Antenna Not Included, U.FL Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF/IF and RFID>RF Transceiver Modules and Modems
Mfr	Semtech Corporation
Series	LoRa™
Package	Bulk
RF Family/Standard	General ISM < 1GHz
Modulation	FSK, GFSK, GMSK, MSK, OOK
Frequency	137MHz ~ 1.02GHz
Data Rate	300kbps
Power - Output	20dBm
Sensitivity	-148dBm
Serial Interfaces	SPI
Antenna Type	Antenna Not Included, U.FL
Voltage - Supply	1.8V ~ 3.7V
Current - Receiving	10.8mA ~ 12mA
Current - Transmitting	20mA ~ 120mA
Mounting Type	Through Hole
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	Module
Base Product Number	SX1276
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	5A991B1
HTSUS	8525.60.1050
Win Source Part Number	1235684-SX1276RF1JAS
Ultra Librarian 3D Model	Ultra Librarian SX1276RF1JAS CAD Model

Description

The SX1276RF1JAS is a LoRa™ RF transceiver module designed for RF/IF and RFID applications.

Manufacturer: Semtech Corporation
Frequency Range: 137MHz to 1.02GHz
Modulation: FSK, GFSK, GMSK, MSK, and OOK
Power Output: 20dBm
Sensitivity: -148dBm
Antenna Type: Antenna Not Included, U.FL
Serial Interfaces: SPI
Voltage Supply: 1.8V to 3.7V
Operating Temperature: -40°C to 85°C
RF Family/Standard: General ISM < 1GHz RF Family/Standard
Data Rate: 300kbps
