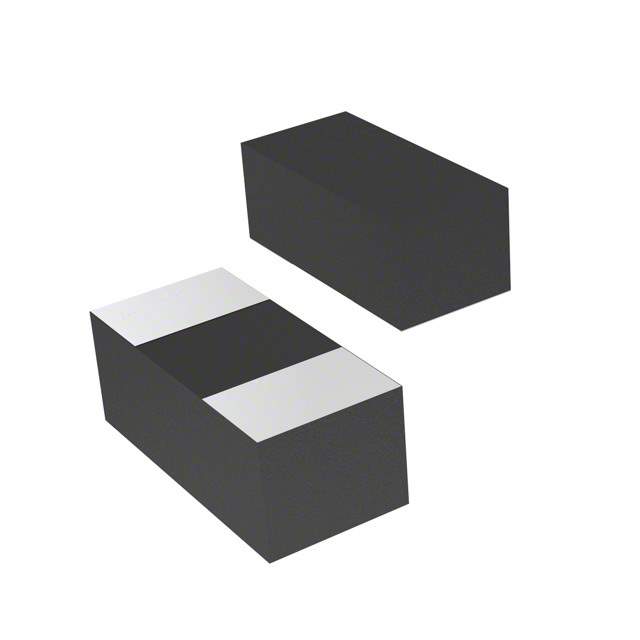

Same model may have multiple batches, images only for reference.

RCLAMP0531Z.TNT

Name: RCLAMP0531Z.TNT
Brand: Semtech Corporation
SKU: 508290
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RCLAMP0531Z.TNT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	ESD Suppressor Diode TVS Bi-Dir 5V 2-Pin SLP T/R / TVS DIODE 5VWM 20VC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	7V
Max Clamping Voltage	20V
Peak Pulse Current(Ippm)	3A (8/20μs)
Power Dissipation - Pd	60W
Applications	RF Antenna
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SLP0603P2X3B
Win Source Part Number	1091635-RCLAMP0531Z.TNT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	RClamp0531Z
Introduction Date	January 07, 2014
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian RCLAMP0531Z.TNT CAD Model

Alternative Products

Description

The RClamp0531Z.TNT is a bidirectional zener diode designed for use in RF antenna applications from Semtech Corporation.

Stand-Off Voltage: 5V
Maximum Clamping Voltage: 20V
Peak Pulse Currents: Up to 3A
Dynamic Resistance: 350mΩ (Low)
Package: Compact SMD
Applications: High Reliability and Robust ESD Protection
