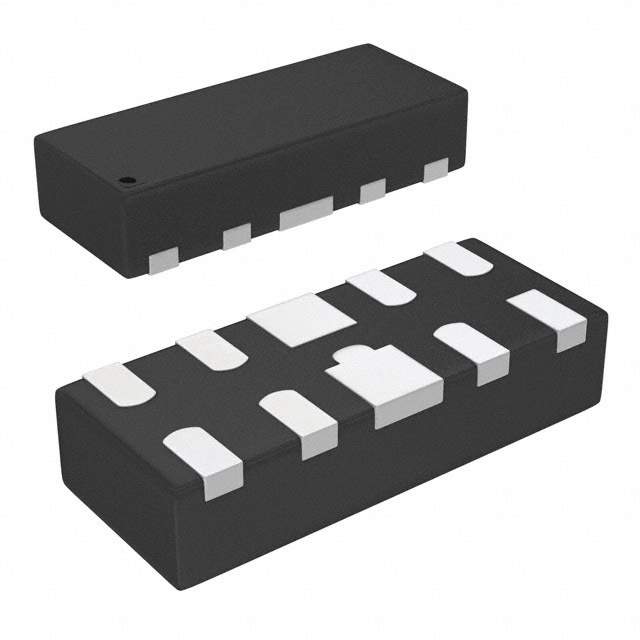

RCLAMP0524PA.TCT Real Image1 RCLAMP0524PA.TCT Real Image2 RCLAMP0524PA.TCT real image5013 RCLAMP0524PA.TCT Real Image
Same model may have multiple batches, images only for reference.
RCLAMP0524PA.TCT Real Image1 RCLAMP0524PA.TCT Real Image2 RCLAMP0524PA.TCT real image5013 RCLAMP0524PA.TCT Real Image
RCLAMP0524PA.TCT Real Image1 RCLAMP0524PA.TCT Real Image2 RCLAMP0524PA.TCT real image5013 RCLAMP0524PA.TCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP0524PA.TCT

Part No RCLAMP0524PA.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC SLP2510P8 / ESD Suppressor Diode Diode Array Uni-Dir 5V 10-Pin SLP-P T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 150W
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP2510P8
Win Source Part Number 062407-RCLAMP0524PA.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name RCLAMP0524PA
Introduction Date March 08, 2010
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian RCLAMP0524PA.TCT CAD Model

Description

The Semtech Corporation 062407-RCLAMP0524PA.TCT is a steering (rail to rail) type circuit protection device that is ideal for use in HDMI applications.

  • Type: steering (rail to rail)
  • Applications: HDMI
  • Mounting Type: SMD (SMT)
  • Number of Channels: four unidirectional
  • Protection: power line
  • Capacitance: 0.8pF @ 1MHz
  • STAND-OFF Voltage: 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 15V
  • Peak Pulse Current: 1A (8/20μs)
  • Power Dissipation: 150W
  • Compliance: halogen-free
