RCLAMP0504P.TCT Semtech Corporation
Same model may have multiple batches, images only for reference.

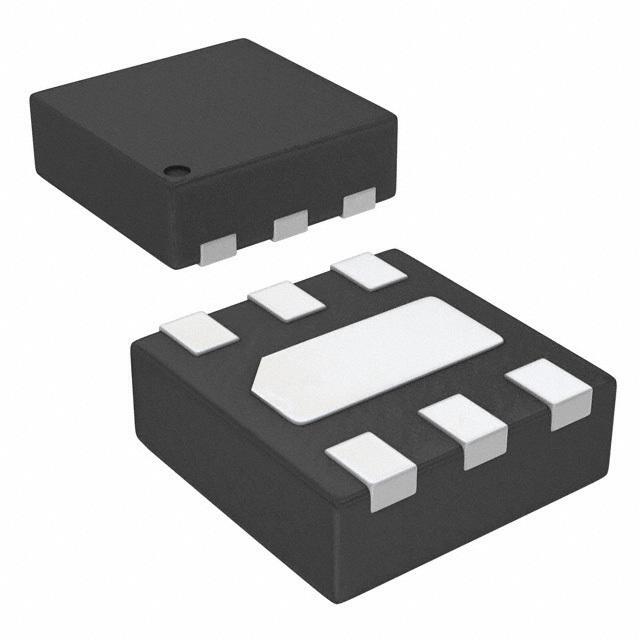

RCLAMP0504P.TCT

Part No RCLAMP0504P.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18VC SLP1616P6
Datasheet
RCLAMP0504P.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Not For New Designs
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 18V
Peak Pulse Current(Ippm) 6A (8/20μs)
Power Dissipation - Pd 150W
Power Line Protection Yes
Applications Ethernet, Multimedia Card Interface, USB OTG
Capacitance @ Frequency 1.9pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1616P6 (1.6x1.6)
Win Source Part Number 027233-RCLAMP0504P.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, RF Communications, Sensing & Instrumentation, Power Management, Industrial, Multimedia
Ultra Librarian 3D Model Ultra Librarian RCLAMP0504P.TCT CAD Model

Description

The Semtech Corporation Steering (Rail to Rail) 027233-RCLAMP0504P.TCT is a unidirectional 4-channel diode designed for Ethernet, Multimedia Card Interface, and USB OTG applications.

  • Case: SLP1616P6 (1.6x1.6)
  • Mounting: SMD (SMT) technology
  • Capacitance @ 1MHz: 1.9pF
  • Maximum Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 18V
  • Peak Pulse Current: 6A (8/20μs)
  • Power Dissipation: 150W
  • Supply and Demand Status: balanced
  • Used In: computers and computer peripherals, communications and networking, imaging, video and vision, RF communications, sensing and instrumentation, power management, industrial, and multimedia
