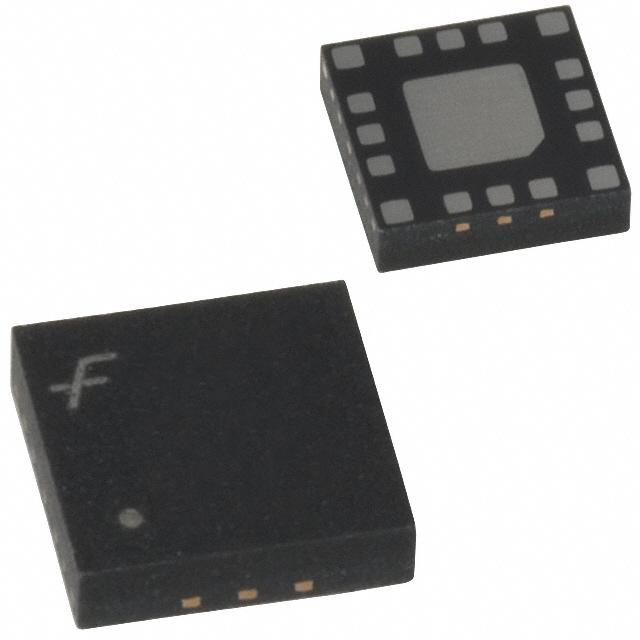

FAN5609MPX Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FAN5609MPX

Part No FAN5609MPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - LED Drivers
Description IC LED DRVR RGLTR DIM 20MA 16MLP
Datasheet
FAN5609MPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 4
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Channel Output Current 20mA
Frequency 1MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-MLP (4x4)
Win Source Part Number 122748-FAN5609MPX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FAN5609MPX CAD Model

Description

FAN5609MPX: Advanced Charge Pump with PWM Dimming

The FAN5609MPX offers an efficient solution for driving up to four LEDs, ideal for backlighting and display applications. Its PWM dimming feature provides precise brightness control.

  • Smartphones
  • Portable game consoles
  • Camcorders
  • LED flashlights

Features and Benefits:

  • PWM dimming for adjustable brightness
  • High efficiency with low dropout voltage
  • Over-temperature protection ensures safe operation
  • Miniature packaging for minimal PCB footprint
  • Automatic switch frequency adaptation enhances efficiency

Designed for performance-focused electronics, the FAN5609MPX exemplifies precision and adaptability in compact illumination applications.
