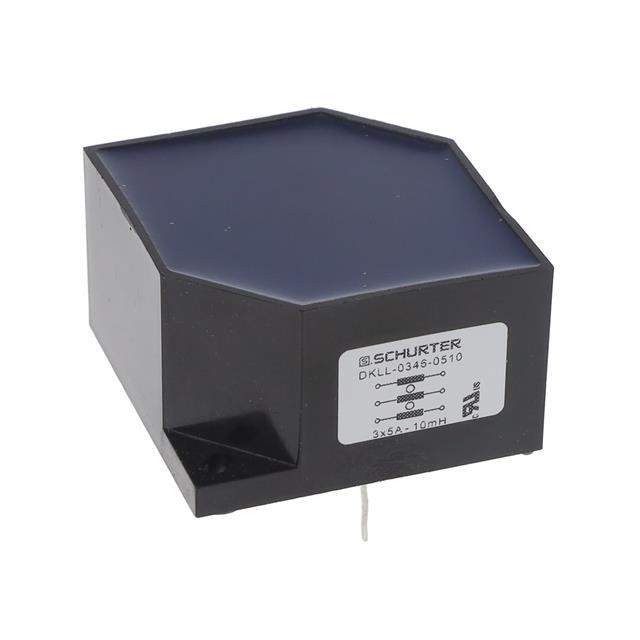

DKLL-0346-0510 Real Image
Same model may have multiple batches, images only for reference.

DKLL-0346-0510

Part No DKLL-0346-0510
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 5A 3LN TH / 3 Line Common Mode Choke Through Hole 5A DCR 48mOhm
Datasheet
DKLL-0346-0510 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr SCHURTER Inc.
Series DKLL-3
Package Bulk
Product Status Last Time Buy
Number of Lines 3
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 48mOhm
Voltage Rating - DC 760V
Voltage Rating - AC 540V
Temperature Range - Operating -25°C ~ 100°C
Approval Agency UR
Mounting Type Through Hole
Size / Dimension 1.969" L x 1.969" W (50.00mm x 50.00mm)
Package / Case Nonstandard
Base Product Number DKLL
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1340452-DKLL-0346-0510
Ultra Librarian 3D Model Ultra Librarian DKLL-0346-0510 CAD Model

Description

The DKLL-0346-0510 common mode choke from SCHURTER Inc. is a high-quality filter used in various electronic circuits. DKLL-0346-0510 is manufactured by SCHURTER Inc.

  • Series: DKLL-3
  • Voltage Rating: 540V AC and 760V DC
  • Current Rating: 5A
  • Maximum DC Resistance: 48mOhm
  • Temperature Range: -25°C to 100°C
  • Status: Last Time Buy
