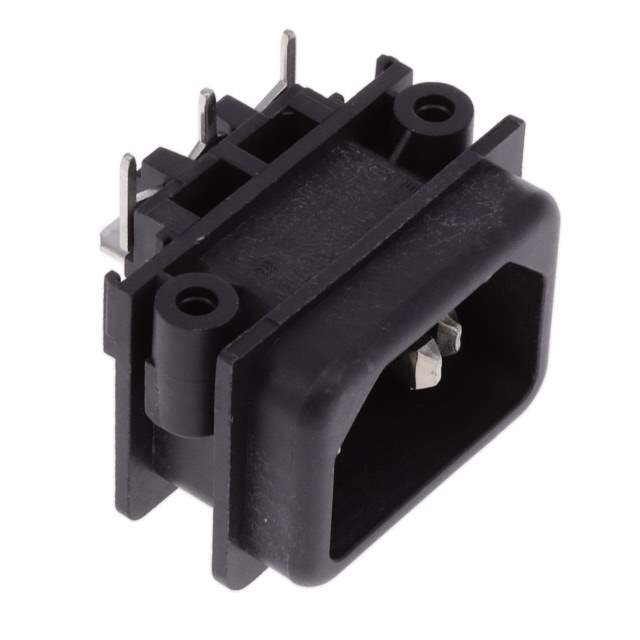

GSF1.0001.01 Real Image
Same model may have multiple batches, images only for reference.

GSF1.0001.01

Part No GSF1.0001.01
Manufacturer Schurter Inc.
Catalog Barrel - Power Connectors
Description PWR ENT RCPT IEC320-C14 PNL SLDR / Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
Datasheet
GSF1.0001.01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr SCHURTER Inc.
Series GSF1
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - IEC 10A
Voltage - IEC 250VAC
Current - UL 10A
Voltage - UL 250VAC
Filter Type Unfiltered - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange; Through Hole, Right Angle
Termination Solder
Features Mounting Hardware
Panel Cutout Dimensions Rectangular - 30.30mm x 22.30mm
Panel Thickness 0.236" (6.00mm)
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency CCC, CSA, ENEC, UL
Base Product Number GSF1.0001
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 486-5636,GSF1.0001.01-ND
Standard Package 50
Win Source Part Number 1019164-GSF1.0001.01
Ultra Librarian 3D Model Ultra Librarian GSF1.0001.01 CAD Model

Description

The GSF1.0001.01 is a power entry connector with inlets, outlets and modules.

  • Connector Type: Receptacle, Male Blades
  • Termination: Solder
  • Connector Style: IEC 320-C14
  • Ingress Protection: IP40
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 50
  • Filter Type: Unfiltered - Commercial
  • Fuse Holder / Drawer: No
  • Fuse(s): No
  • Panel Cutout Dimensions: Rectangular - 30.30mm x 22.30mm
  • Panel Thickness: 0.236 inches (6.00mm)
  • Mounting Type: Panel Mount, Flange, Through Hole, Right Angle
  • Manufacturer: SCHURTER Inc.
  • Other Names: 486-5636, GSF1.0001.01-ND
