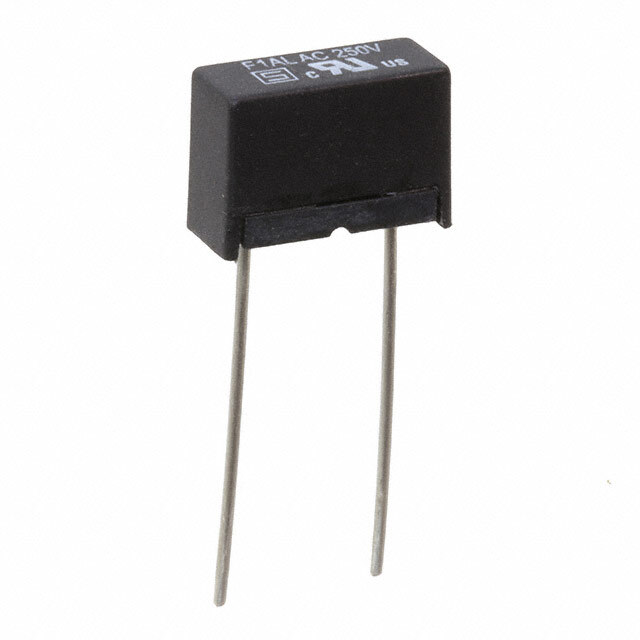

Same model may have multiple batches, images only for reference.
7100.1170.95 Schurter Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7100.1170.95

Part No 7100.1170.95
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 3.15A 250VAC/VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Case / Package Radial, Box
Breaking Capacity @ Rated Voltage 63A
Melting I2t 2.4
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.453\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1604679-7100.1170.95
Ultra Librarian 3D Model Ultra Librarian 7100.1170.95 CAD Model
