Same model may have multiple batches, images only for reference.

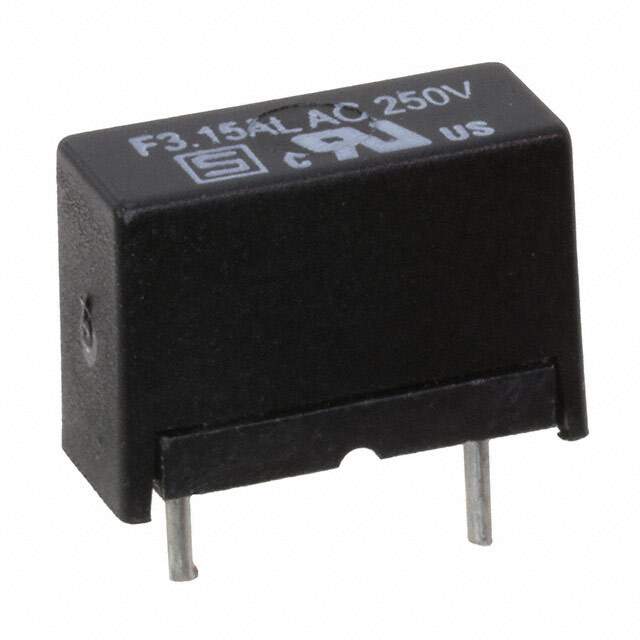

7100.1063.13 Real Image
Same model may have multiple batches, images only for reference.

7100.1063.13

Part No 7100.1063.13
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 630MA 250VAC/VDC
Datasheet
7100.1063.13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Bulk
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 630mA
Voltage Rating - AC 250V
Voltage Rating - DC 250V
Response Time Fast
Mounting Through Hole
Breaking Capacity @ Rated Voltage 35A
Nominal Melting - I2t 0.1
Approvals cURus
Temperature Range - Operating -40°C to 85°C
Dimension 0.453" L x 0.197" W x 0.315" H (11.50mm x 5.00mm x 8.00mm)
Win Source Part Number 1027420-7100.1063.13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7100.1063.13 CAD Model

Description

The 7100.1063.13 is a circuit protection product manufactured by Schurter Inc.

  • Win Source Part Number: 1027420-7100.1063.13
  • Packaging: Bulk
  • Current Rating: 630mA
  • Fuse Type: Fast-acting
  • Voltage Rating: 250V AC/DC
  • Breaking Capacity: 35A @ Rated Voltage
  • Mounting: Through-hole
  • Approval: cURus
  • Temperature Range: -40°C to 85°C
  • Nominal Melting I2t: 0.1
  • Application: Overcurrent and short circuits protection
