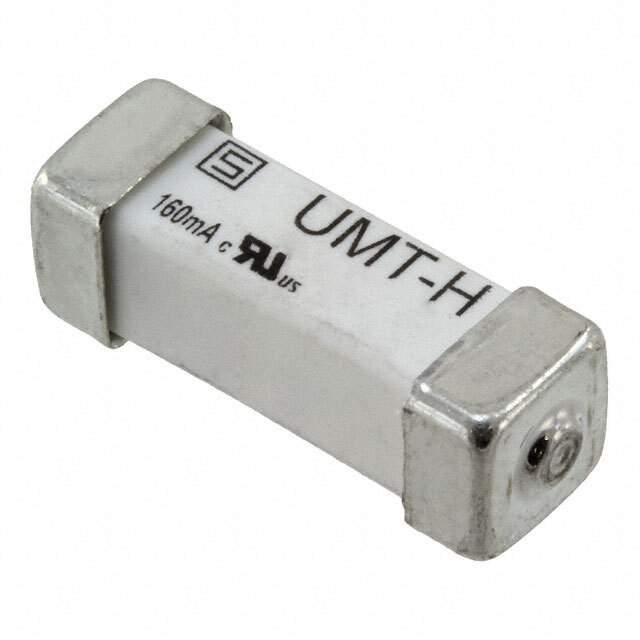

3403.0284.23 Real Image
Same model may have multiple batches, images only for reference.

3403.0284.23

Part No 3403.0284.23
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 10A 250VAC/125VDC / 10 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
3403.0284.23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UMT-H
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 198
Approval Agency CQC, cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
Base Product Number 3403.0284
MSL Level Vendor Undefined
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-3486-2,486-3486-1,486-3486-6,3403.0284.23-ND
Standard Package 1,500
Win Source Part Number 1189000-3403.0284.23
Ultra Librarian 3D Model Ultra Librarian 3403.0284.23 CAD Model

Description

The UMT-H series of fuses from SCHURTER Inc. is a board mount slow blow fuse that is designed for use in circuit protection applications.

  • Voltage Rating: 250V AC, 125V DC
  • Breaking Capacity: 1.5kA @ Rated Voltage
  • Melting I2t: 198
  • Response Time: Slow Blow
  • Package: Tape and Reel
  • Standard Package: 1,500
  • Mounting Type: SMD (SMT)
  • Package/Case Size: 2-SMD, Square End Block
  • Operating Temperature Range: -55°C to 125°C
  • AEC-Q200 Rated: Yes
  • REACH Affected: Yes
  • Approval Agency: CQC, cURus, VDE
