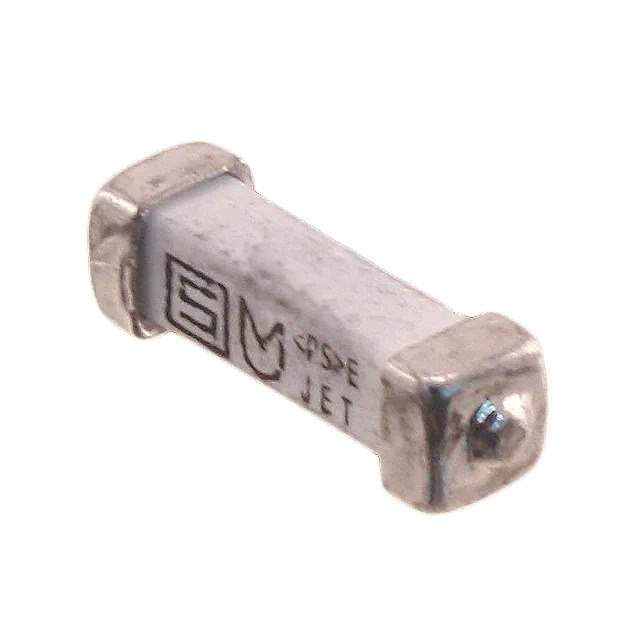

3403.0174.11 Real Image
Same model may have multiple batches, images only for reference.

3403.0174.11

Part No 3403.0174.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 6.3A 250VAC 125VDC
Datasheet
3403.0174.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series UMT 250
Package Bulk
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 6.3 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 35A DC
Melting I2t 66
Approval Agency CQC, cURus, KC, PSE/JET, VDE
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
Base Product Number 3403.0174
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 855757-3403.0174.11
Ultra Librarian 3D Model Ultra Librarian 3403.0174.11 CAD Model

Description

The 855757-3403.0174.11 is a surface mount board mount fuse from the UMT 250 series manufactured by SCHURTER Inc. It is designed for circuit protection in electronic devices and systems.

  • Series: UMT 250
  • Response Time: Slow Blow
  • Voltage Rating: 250V AC / 125V DC
  • Breaking Capacity: 100A AC / 35A DC @ rated voltage
  • Size: 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
  • Standard Package: 100 pieces
  • Mounting Method: Surface Mount
  • Operating Temperature: -55°C to 125°C
  • REACH: Unaffected
