Same model may have multiple batches, images only for reference.

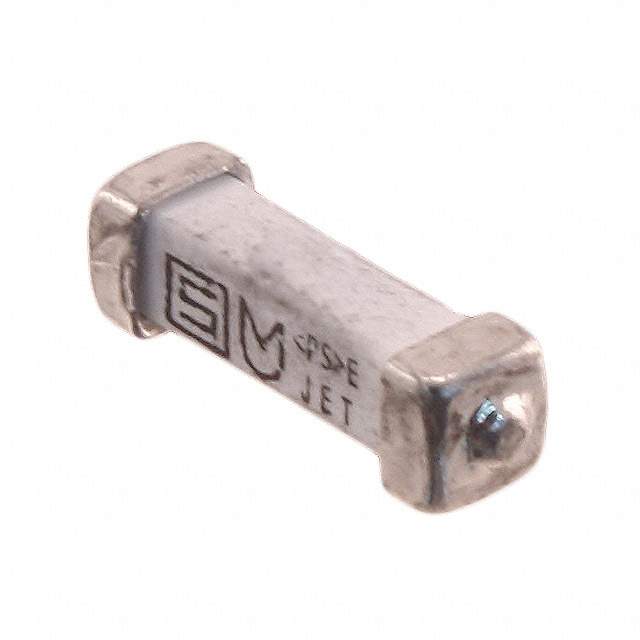

3403.0169.24 Real Image
Same model may have multiple batches, images only for reference.

3403.0169.24

Part No 3403.0169.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 2A 250VAC 125VDC
Datasheet
3403.0169.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Slow
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 200A AC, 35A DC
Nominal Melting - I2t 7.3
Approvals CQC, cURus, KC, PSE/JET, UL, VDE
Temperature Range - Operating -55°C to 125°C
Dimension 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
Win Source Part Number 1005148-3403.0169.24
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3403.0169.24 CAD Model

Description

The Schurter Inc. 1005148-3403.0169.24 is a board mount (cartridge style excluded) fuse with a current rating of 2A.

  • Voltage Rating: 250V AC and 125V DC
  • Response Time: slow
  • Approvals: CQC, cURus, KC, PSE/JET, UL, and VDE
  • Mounting: SMD (SMT)
  • Dimensions: 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
  • Nominal Melting - I2t: 7
  • Supply and Demand Status: balanced
  • Temperature Range: -55°C to 125°C
