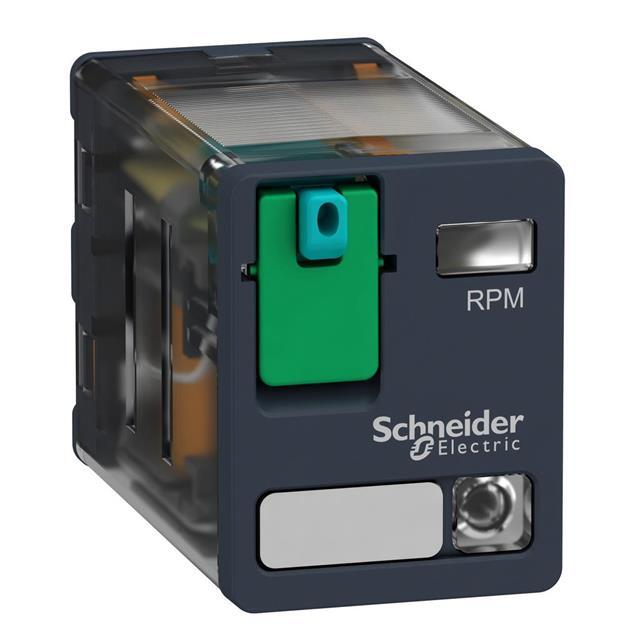

Same model may have multiple batches, images only for reference.
RPF2AF7 Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RPF2AF7

Part No RPF2AF7
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description HARMONY, POWER RELAY, DIN RAIL/P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Chassis Mount
Coil Voltage 120VAC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 25 A
Switching Voltage 250VAC, 28VDC - Max
Load - Max Switching 6250VA, 700W
Coil Current 28.2 mA
Coil Type Non Latching
Termination Style Quick Connect - Multiple Sizes
Must Release Voltage 18 VAC
Operate Time 25 ms
Release Time 25 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CE, CSA, GOST, UL
Relay Type General Purpose
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1550065-RPF2AF7
Ultra Librarian 3D Model Ultra Librarian RPF2AF7 CAD Model
