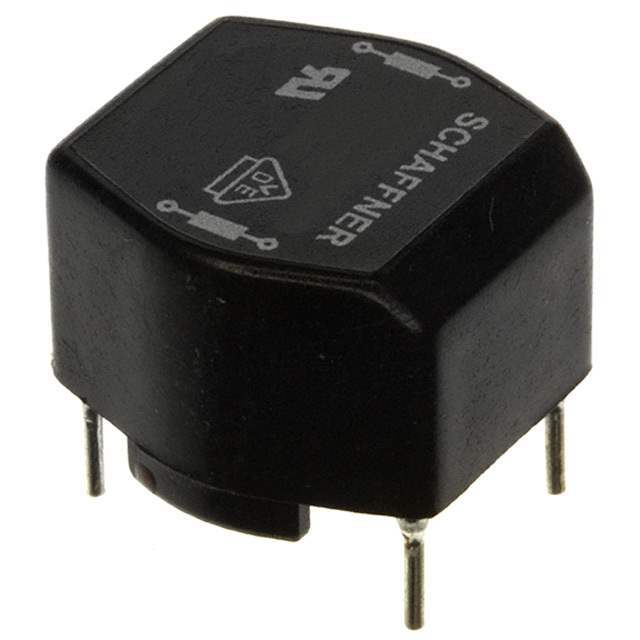

RN112-4-02-0M7 Schaffner EMC Inc.
Same model may have multiple batches, images only for reference.

RN112-4-02-0M7

Part No RN112-4-02-0M7
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 700UH 4A 2LN TH
Datasheet
RN112-4-02-0M7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307669-RN112-4-02-0M7
Category Filters Common Mode Chokes
Manufacturer Schaffner EMC Inc.
Part Status Active
Packaging Tube
Filter Type Power Line
Inductance @ Frequency 700 µH @ 10 kHz
Number of Lines 2
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 24mOhm (Typ)
Voltage Rating - AC 300V
Ultra Librarian 3D Model Ultra Librarian RN112-4-02-0M7 CAD Model

Description

RN chokes are attenuating common-mode or asymmetric (P/N –> E) interference signals, by being connected in series with the phase and neutral lines of an AC powerline input. Symmetrical components of the noise are also attenuated by the leakage inductance (stray inductance) of the windings. These chokes are typically used in conjunction with suppression capacitors.
