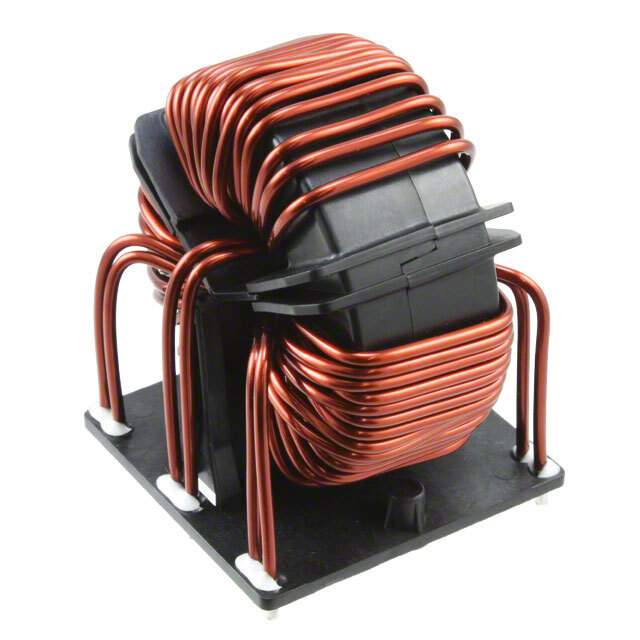

RB8532-36-0M8 Real Image
Same model may have multiple batches, images only for reference.

RB8532-36-0M8

Part No RB8532-36-0M8
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 830UH 36A 3LN TH
Datasheet
RB8532-36-0M8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Schaffner EMC Inc.
Packaging Bulk
Status Active
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 830μH @ 400Hz
Current Rating (Max) 36A
DC Resistance (DCR) (Max) 2.3 mOhm (Typ)
Voltage Rating - DC 1000V (1kV)
Voltage Rating - AC 600V
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 3.228" (82.00mm)
Dimension Vertical, 6 PC Pin
Win Source Part Number 1021807-RB8532-36-0M8
Popularity Medium
Supply and Demand Status Balance
Quantity per package 16
Ultra Librarian 3D Model Ultra Librarian RB8532-36-0M8 CAD Model

Description

The Schaffner EMC Inc. RB8532-36-0M8 is a power line filter with a voltage rating of 600V AC and 1000V DC.

  • Voltage Rating: 600V AC, 1000V DC
  • Current Rating: 36A
  • Mounting Type: Through-Hole
  • Height: 3.228" (82.00mm)
  • Number of Lines: Three
  • Inductance: 830μH @ 400Hz
  • DC Resistance: 2.3 mOhm (typ)
  • Operating Temperature: -40°C to 125°C
  • Packaging: Bulk
  • Package Quantity: 16
