Same model may have multiple batches, images only for reference.

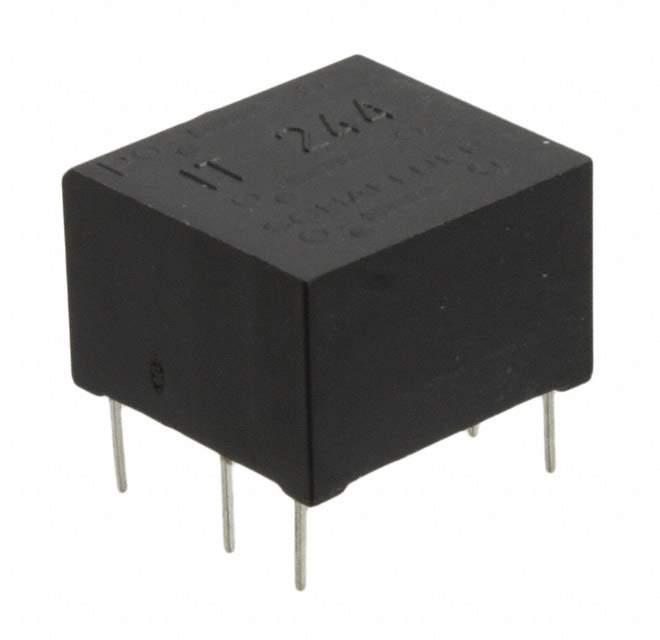

IT248 Real Image
Same model may have multiple batches, images only for reference.

IT248

Part No IT248
Manufacturer Schaffner EMC Inc.
Catalog Pulse Transformers
Description XFRMR PULSE 2:1 SGL 17MH .25A / 17mH Data/Voice Coupling Pulse Transformer 2:1 Through Hole
Datasheet
IT248 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Schaffner EMC Inc.
Series IT
Package Tray
Transformer Type Data/Voice Coupling
Inductance 17mH
Mounting Type Through Hole
Dimension 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) 0.445" (11.30mm)
Temperature Range - Operating -25°C ~ 70°C
Weight 0.2 oz (5.7 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 800068,IT 248,817-1515,22-485
Standard Package 200
Win Source Part Number 1141856-IT248
Ultra Librarian 3D Model Ultra Librarian IT248 CAD Model

Description

The IT248 is a pulse transformer manufactured by Schaffner EMC Inc.

  • Popularity: high
  • Series: IT
  • Mounting Type: through hole
  • Supply and Demand Status: balance
  • Standard Package: 200
  • MSL Level: not applicable
  • ECCN: EAR99
  • HTSUS Code: 8504.31.2000
  • Transformer Type: data/voice coupling
  • Inductance: 17mH
