Same model may have multiple batches, images only for reference.

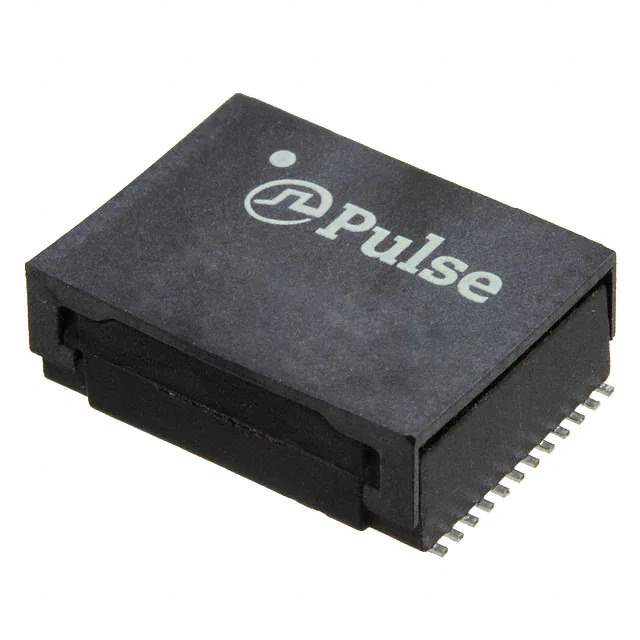

HX5008FNL Real Image
Same model may have multiple batches, images only for reference.

HX5008FNL

Part No HX5008FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1 TX 1CT:1 RX
Datasheet
HX5008FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 325µH
Mounting Type Surface Mount
Size / Dimension 0.518" L x 0.703" W (13.16mm x 17.86mm)
Height - Seated (Max) 0.241" (6.12mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 874068-HX5008FNL
Ultra Librarian 3D Model Ultra Librarian HX5008FNL CAD Model

Description

The 874068-HX5008FNL is a pulse transformer designed for use in transformers.

  • Size: 0.518" L x 0.703" W (13.16mm x 17.86mm)
  • Height: 0.241" (6.12mm) Seated
  • Type: LAN 10/100/1000 Base-T
  • Inductance: 325μH
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package: Tube
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
