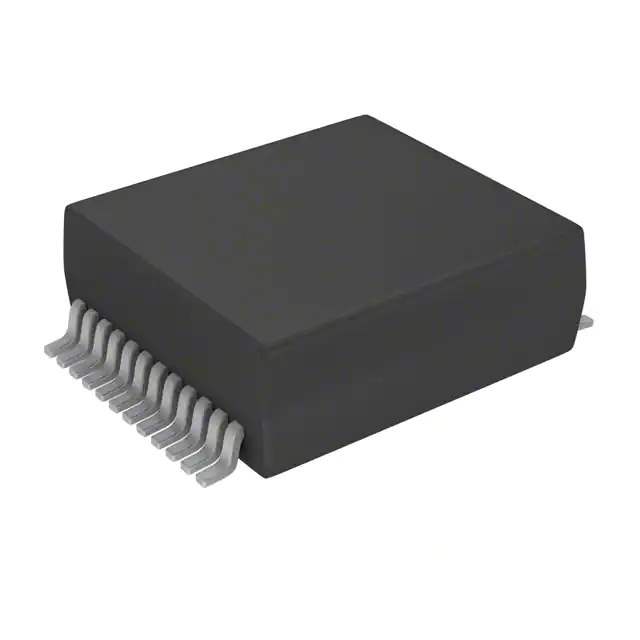

HX5004ENLT Real Image
Same model may have multiple batches, images only for reference.

HX5004ENLT

Part No HX5004ENLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1 CT:1CT TX/RX 350UH / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HX5004ENLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.480" W (17.50mm x 12.20mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 920690-HX5004ENLT
Ultra Librarian 3D Model Ultra Librarian HX5004ENLT CAD Model

Description

The HX5004ENLT is a pulse transformer from Pulse.

  • Package: Tape & Reel
  • Size: 0.689" L x 0.480" W (17.50mm x 12.20mm)
  • Application: LAN 10/100/1000 Base-T
  • Inductance: 350μH
  • Seated Height: 0.225" (5.72mm)
  • Temperature Range: -40°C to 85°C
  • Product Status: Active
  • ECCN: EAR99
  • REACH Regulations: Unaffected
  • Standard Package Quantity: 300 pcs
