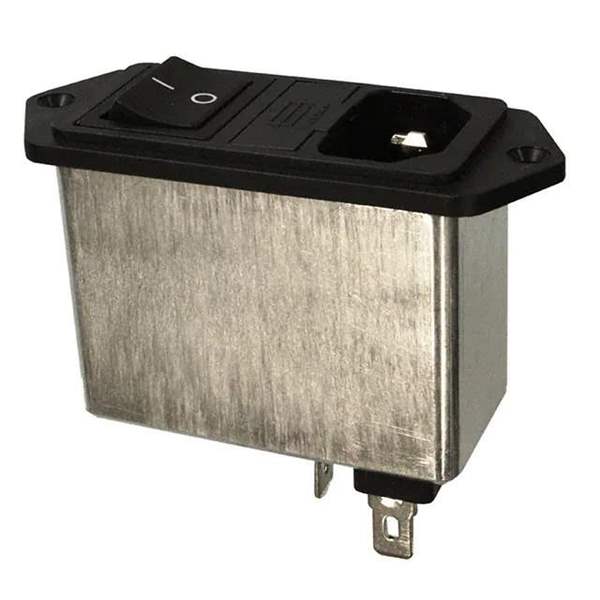

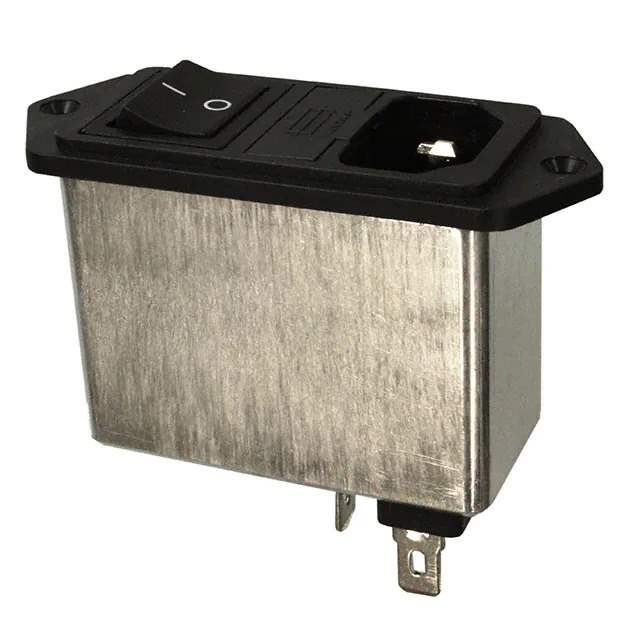

FN284-2-06 Real Image
Same model may have multiple batches, images only for reference.

FN284-2-06

Part No FN284-2-06
Manufacturer Schaffner EMC Inc.
Catalog AC Power Connectors
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Datasheet
FN284-2-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - AC Power Connectors - Power Entry Modules (PEM)
Mfr Schaffner EMC Inc.
Series FN 280
Package Tray
Product Status Active
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Number of Positions 3
Filter Type Filtered (EMI, RFI) - Commercial
Current Rating - Filter 2A
Switch Features Switch On-Off
Accomodates a Fuse Yes (Fuse Not Included)
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Features Front or Rear Side Mount
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Rectangular - 29.00mm x 60.00mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approval Agency CQC, CSA, ENEC, UL
Base Product Number FN284
Standard Package 40 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 846922-FN284-2-06
Ultra Librarian 3D Model Ultra Librarian FN284-2-06 CAD Model

Description

The FN284-2-06 is a power entry module (PEM) connector from Schaffner EMC Inc.

  • Category: Connectors
  • Application: AC Power
  • Package: Tray
  • Standard Package: 40 pieces
  • Product Status: Active
  • Positions: 3
  • Connector Type: Receptacle, Male Blades Module
  • Mounting Type: Panel Mount, Flange
  • Connector Style: IEC 320-C14
  • ECCN: EAR99
  • REACH: Unaffected
  • Approvals: CQC, CSA, ENEC, UL
