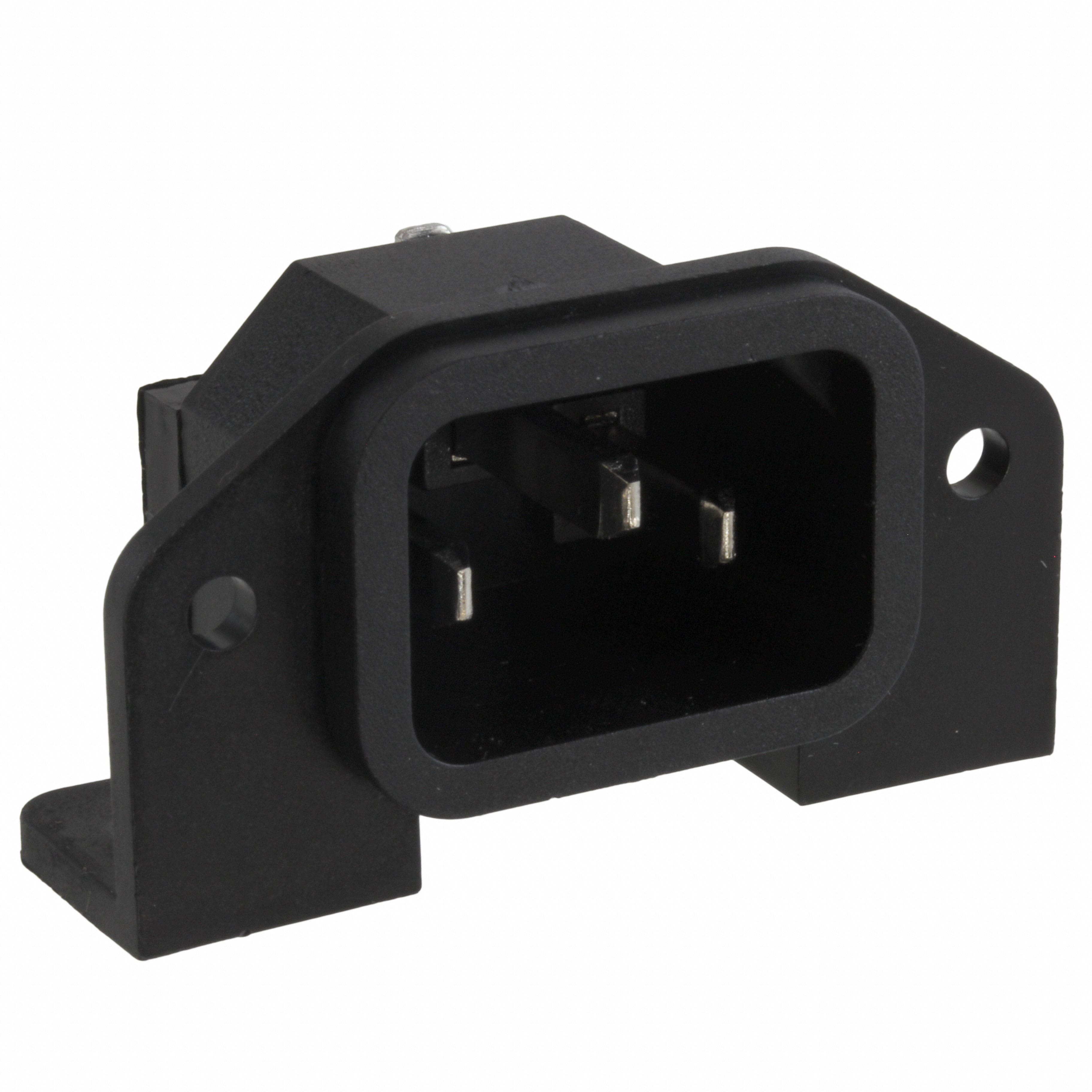

Same model may have multiple batches, images only for reference.
PX0580/PC/12132
Same model may have multiple batches, images only for reference.

PX0580/PC/12132

Part No PX0580/PC/12132
Manufacturer Bulgin
Catalog AC Power Connectors
Description PWR ENT RCPT IEC320-C14 PNL SLDR / Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
Datasheet
PX0580/PC/12132 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - AC Power Connectors - Power Entry Modules (PEM)
Mfr Bulgin
Series PX
Package Bulk
Product Status Active
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current Rating - Appliance Inlet 10A
Voltage Rating - Appliance Inlet 250VAC
Number of Positions 3
Filter Type Unfiltered - Commercial
Accomodates a Fuse No
Mounting Type Panel Mount, Flange; Through Hole, Right Angle
Termination Solder
Features Terminating Cover
Panel Cutout Dimensions Rectangular - 30.25mm x 22.48mm
Panel Thickness 0.126" (3.20mm)
Material Flammability Rating UL94 V-0
Approval Agency CSA, ENEC, UL, VDE
Base Product Number PX0580
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 847636-PX0580/PC/12132
Ultra Librarian 3D Model Ultra Librarian PX0580/PC/12132 CAD Model

Description

The PX Series Power Entry Module is a reliable and efficient connector designed for AC power applications.

  • Connector Type: Receptacle with Male Blades
  • Connector Style: IEC 320-C14
  • Number of Positions: 3
  • Termination: Solder
  • Mounting Type: Panel Mount, Flange, Through Hole, Right Angle
  • Panel Cutout Dimensions: 30.25mm x 22.48mm
  • Panel Thickness: 0.126" (3.20mm)
  • Package Quantity: 200
