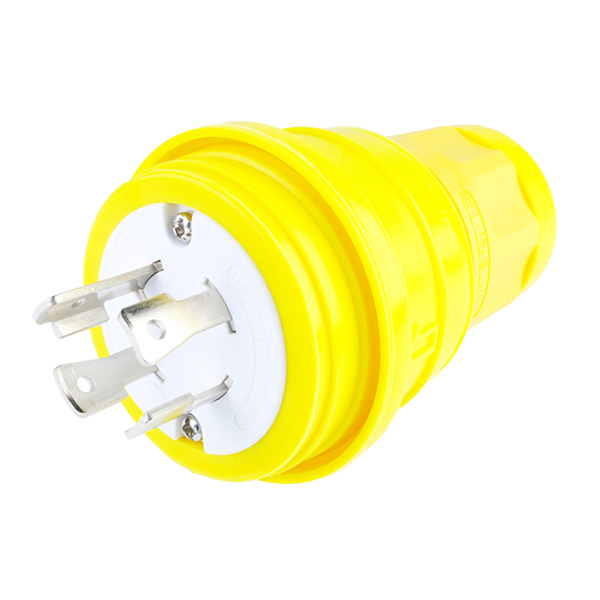

1301470077 Molex
Same model may have multiple batches, images only for reference.

1301470077

Part No 1301470077
Manufacturer Molex, LLC
Catalog AC Power Connectors
Description PWR ENT PLUG NEMAL14-30 STR SCRW
Datasheet
1301470077 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309407-1301470077
Manufacturer Molex
Category Connectors, Interconnects>AC Power Connectors>Plugs and Receptacles
Packaging Bulk
Part Status Active
Connector Type Plug, Male Blades
Current Rating (Amps) 30A
Voltage Rating 125/250VAC
Number of Positions 4
Mounting Type Free Hanging (In-Line)
Termination Screw
Features Cord Grip, Locking Blade, Strain Relief
Ultra Librarian 3D Model Ultra Librarian 1301470077 CAD Model

Description

Part Number: 1301470077
Product Description: Watertite Extreme Plug with Locking Blade, 3 Pole/4 Wire, NEMA L14- 30, 125V/250V, Cord Grip Body Size F4
Series Number: 130147
Status: Active
Product Category: Wiring Devices
Engineering Number: 28W74
