Same model may have multiple batches, images only for reference.

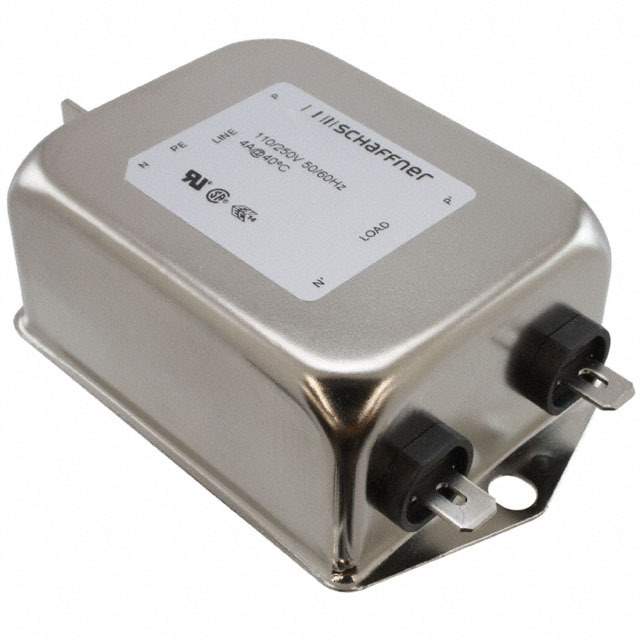

FN2090-20-06 Real Image
Same model may have multiple batches, images only for reference.

FN2090-20-06

Part No FN2090-20-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 110/250VAC 20A CHASS / Single Phase EMC/EMI Line Filter 20 A 110V, 250VAC DC ~ 400Hz Two Stage Quick Connect
Datasheet
FN2090-20-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 2090
Package Tray
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 110V, 250V
Current 20 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CE, CSA, ENEC, UR
Temperature Range - Operating -20°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 2.7mH
Base Product Number FN2090
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 802445,FN20902006,817-1334,299-224
Standard Package 10
Win Source Part Number 1186844-FN2090-20-06
Ultra Librarian 3D Model Ultra Librarian FN2090-20-06 CAD Model

Description

The FN2090-20-06 is a single-phase power line filter module manufactured by Schaffner EMC Inc.

  • Filter Type: Two-stage
  • Current Rating: 20A
  • Rated Voltage: 110V and 250V
  • Termination Style: Quick connect
  • Mounting: Chassis mounted
  • Inductance: 2.7mH
  • Frequency Range: DC ~ 400Hz
  • Application: General-purpose
