Same model may have multiple batches, images only for reference.

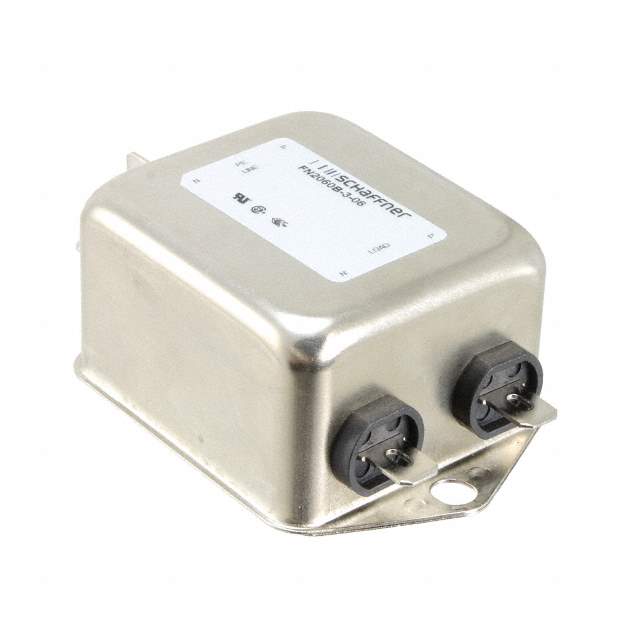

FN2060B-3-06 Real Image
Same model may have multiple batches, images only for reference.

FN2060B-3-06

Part No FN2060B-3-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 3A CHASS MNT / Single Phase EMC/EMI Line Filter 3 A 250VAC DC ~ 400Hz Two Stage Quick Connect
Datasheet
FN2060B-3-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 2060
Package Box
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 250V
Current 3 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CE, CSA, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 2.5mH
Base Product Number FN2060
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names FN2060B-3-06-ND,817-1780,293-118,FN2060B306,800738
Standard Package 50
Win Source Part Number 1214894-FN2060B-3-06
Ultra Librarian 3D Model Ultra Librarian FN2060B-3-06 CAD Model

Description

The FN 2060 power line filter module is a two-stage configuration filter.

  • Current: 3A
  • Inductance: 2.5mH
  • Application: General-purpose
  • Termination Style: Quick Connect
  • Package: Box
  • Standard Package: 50
  • Voltage: 250V AC
  • Frequency Operating Range: DC ~ 400Hz
  • Temperature Range: -25°C ~ 100°C
  • Manufacturer: Schaffner EMC Inc.
