Same model may have multiple batches, images only for reference.

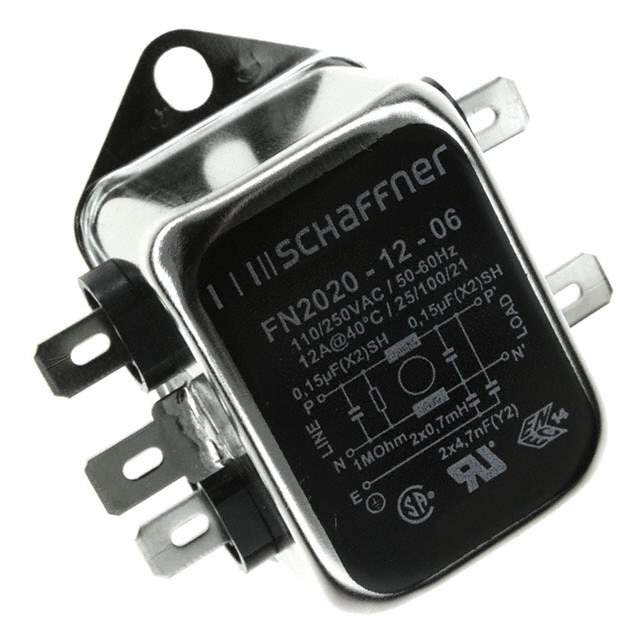

FN2020-12-06 Real Image
Same model may have multiple batches, images only for reference.

FN2020-12-06

Part No FN2020-12-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 12A CHASS MNT / Single Phase EMC/EMI Line Filter 12 A 250VAC DC ~ 400Hz Single Stage Quick Connect
Datasheet
FN2020-12-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 2020
Package Tray
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 12 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CSA, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 700µH
Base Product Number FN2020
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 291-688,FN2020 -12 -06,FN20201206,800608,817-1266
Standard Package 60
Win Source Part Number 1221305-FN2020-12-06
Ultra Librarian 3D Model Ultra Librarian FN2020-12-06 CAD Model

Description

The Schaffner EMC Inc. FN 2020-12-06 power line filter module is a single-phase single-stage filter that is designed for general-purpose applications.

  • Rated Voltage: 250V AC
  • Frequency Range: DC to 400Hz
  • Termination Style: Quick-connect
  • Maximum Current: 12A
  • Inductance: 700µH
  • Operating Temperature: -25°C to 100°C
  • Mounting: Chassis mountable
  • Package: Tray
  • Approvals: CSA, ENEC, and UR
  • REACH: Unaffected
  • Alternative Parts: 800608, FN 2020-12-06, and FN2020-12-06
