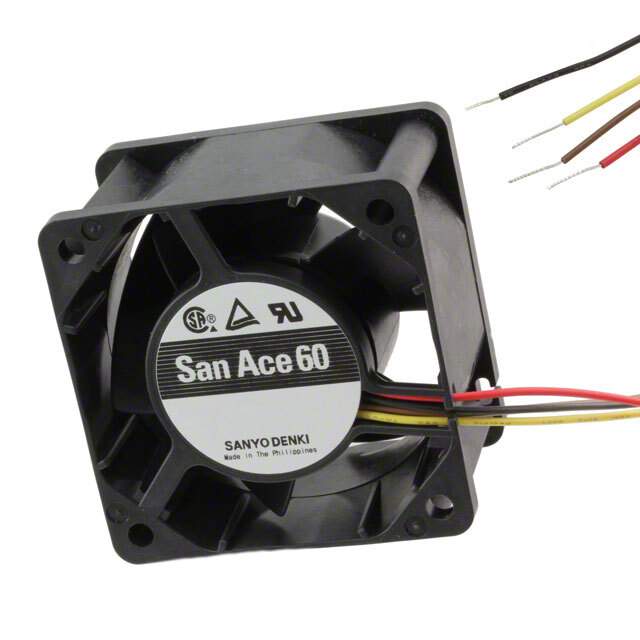

9GV0648P1H03 Real Image
Same model may have multiple batches, images only for reference.

9GV0648P1H03

Part No 9GV0648P1H03
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 60X38MM 48VDC WIRE / Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 76.0 CFM (2.13m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 60
Package Box
Voltage - Rated 48VDC
Size / Dimension Square - 60mm L x 60mm H
Width 38.00mm
Air Flow 76.0 CFM (2.13m³/min)
Static Pressure 2.480 in H2O (617.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 63.0dB(A)
Power (Watts) 24 W
RPM 14500 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.287 lb (130.18 g)
Current Rating (Amps) 0.500A
Voltage Range 38 ~ 57VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GV0648
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1346917-9GV0648P1H03
Ultra Librarian 3D Model Ultra Librarian 9GV0648P1H03 CAD Model

Description

The San Ace 60 is a DC brushless fan that is designed for efficient thermal management.

  • Voltage Rating: 48VDC
  • Power Consumption: 24W
  • Control/Function: PWM Control, Speed Sensor (Tach)
  • Lifetime @ Temp.: 40000 Hours @ 60°C
  • Size / Dimension: 60mm L x 60mm H
  • Weight: 0.287 lb (130.18 g)
  • Voltage - Rated: 38 ~ 57VDC
  • Air Flow: 76.0 CFM (2.13m³/min)
  • Speed: 14500 RPM
  • Noise: 63.0dB(A)
  • Material - Frame: Plastic
  • Material - Blade: Plastic
  • Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
