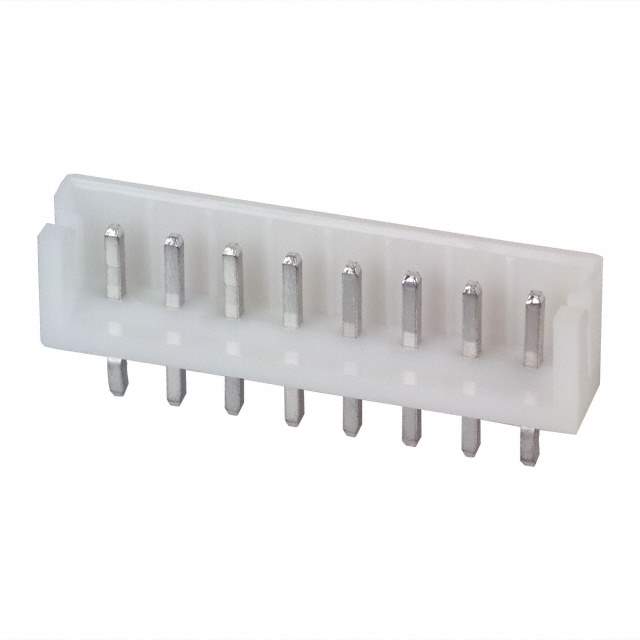

B8B-EH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B8B-EH-A(LF)(SN)

Part No B8B-EH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.1mm
Base Product Number B8B-EH-A
Other Names B8BEHALFSN,455-1617
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293304-B8B-EH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B8B-EH-A(LF)(SN) CAD Model

Description

The B8B-EH-A(LF)(SN) is a rectangular connector that belongs to the EH series.

  • Series: EH
  • Positions: 8
  • Type: Male pin header
  • Contact Type: Press-fit, solder
  • Fastening Type: Friction lock
  • Voltage Rating: 250V
  • Mated Stacking Heights: 8.1mm
  • Material Flammability Rating: UL94 V-0
  • Mounting: Through hole
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Pitch - Mating: 0.098" (2.50mm)
  • Contact Finish - Mating: Tin
  • Contact Length - Post: 0.126" (3.20mm)
  • Insulation Height: 0.236" (6.00mm)
  • Temperature Range of Operation: -25°C ~ 85°C
  • Contact Length - Mating: 0.130" (3.30mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 3A
  • HTSUS: 8536.69.4040
  • Manufacturer: JST Sales America Inc.
