Same model may have multiple batches, images only for reference.

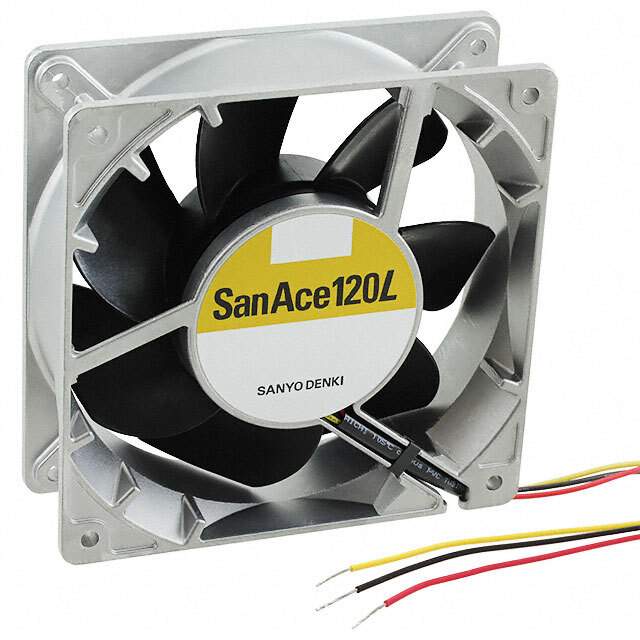

9LB1248H101 Real Image
Same model may have multiple batches, images only for reference.

9LB1248H101

Part No 9LB1248H101
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN 120X38MM 48VDC RBLS TACH / DC Fan Axial Ball Bearing 48V 40.8V to 55.2V 102.4CFM 39dB 119 X 119 X 38mm
Datasheet
9LB1248H101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Sanyo Denki America Inc.
Series San Ace 120L
Voltage Rating DC 48VDC
Dimension Square - 119mm L x 119mm H
Width 38mm
Air Flow 102.4 CFM (2.90m3/min)
Bearing Type Ball
Fan Type Tubeaxial
Features Speed Sensor (Tach)
Noise 39 dB(A)
Power (Watts) 5.28W
RPM 2600 RPM
Termination 3 Wire Leads
Operating Temperature Range -4 ~ 158°F (-20 ~ 70°C)
Approvals CSA, TUV, UR
Voltage Range 40.8 ~ 55.2VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 200000 Hrs @ 60°C
Win Source Part Number 778298-9LB1248H101
Popularity Medium
Supply and Demand Status Limited
Family Name 9LB
Introduction Date October 06, 2008
ECCN 4A994
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 9LB1248H101 CAD Model

Description

The Sanyo Denki America Inc. San Ace 120L series 9LB1248H101 is a fan from Sanyo Denki America Inc. designed for thermal management.

  • Width: 38mm
  • Square Dimension: 119mm L x 119mm H
  • Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Noise Level: 39 dB(A)
  • Voltage Range: 40.8 ~ 55.2VDC
  • Power: 5.28W
