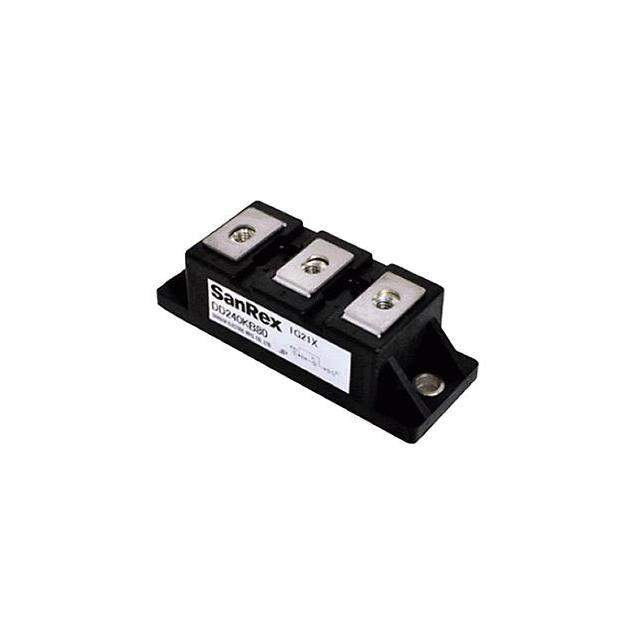

DD200KB80 Real Image
Same model may have multiple batches, images only for reference.

DD200KB80

Part No DD200KB80
Manufacturer SanRex Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 800V 200A  /  Diode Array 1 Pair Series Connection Standard 800 V 200A Chassis Mount Module
Datasheet
DD200KB80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr SanRex Corporation
Package Tray
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) (per Diode) 200A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 620 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 mA @ 800 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 4076-DD200KB80
Standard Package 1
Win Source Part Number 1229224-DD200KB80
Ultra Librarian 3D Model Ultra Librarian DD200KB80 CAD Model

Description

The 1229224-DD200KB80 is a standard diode type electronic component with a voltage - DC reverse (Vr) (Max) of 800 V and voltage - forward (Vf) (Max) @ If of 1.3 V @ 620 A.

  • Voltage - DC Reverse (Vr) (Max): 800 V
  • Voltage - Forward (Vf) (Max) @ If: 1.3 V @ 620 A
  • Current - Reverse Leakage @ Vr: 50 mA @ 800 V
  • Operating Temperature - Junction: -40°C ~ 150°C
  • Diode Configuration: 1 pair series connection
  • Current - Average Rectified (Io) (per diode): 200A
  • Mounting: Chassis
  • Package/Case: Module
  • Manufacturer: SanRex Corporation
