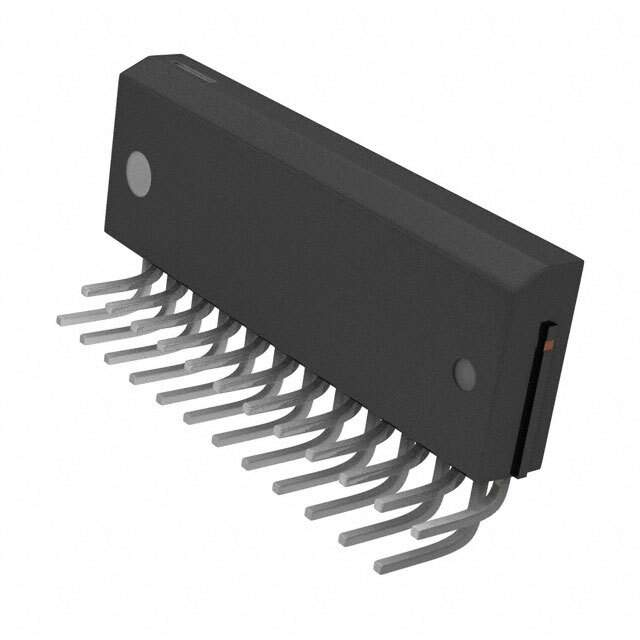

SMA6863MZ-LF2451 Real Image
Same model may have multiple batches, images only for reference.

SMA6863MZ-LF2451

Part No SMA6863MZ-LF2451
Manufacturer Sanken
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER PAR 24SIP
Datasheet
SMA6863MZ-LF2451 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sanken
Packaging Tube/Rail
Status Active
Applications AC Motors
Load Type Inductive
Technology Power MOSFET
Channel Output Current 2.5A
Current - Peak Output 3.75A
Supply Voltage - Operating 20V
Voltage - Load 400V (Max)
Temperature Range - Operating -20°C to 150°C (TJ)
Fault Protection Current Limiting, Over Temperature, UVLO
Mounting Through Hole
Case / Package 24-SIP, LF2451
Win Source Part Number 140071-SMA6863MZ-LF2451
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMA6863MZ-LF2451 CAD Model

Description

The SMA6863MZ-LF2451 is an active electronic component manufactured by Sanken.

  • Type: Integrated circuit used in AC motors.
  • Supply and Demand Status: Limited
  • Package: Tube/rail
  • Win Source Part Number: 140071-SMA6863MZ-LF2451
  • Technology: Power MOSFET
  • Fault Protection: Current limiting, over temperature, and UVLO
  • Maximum Voltage Load: 400V
  • Peak Output Current: 3.75A
  • Channel Output Current: 2.5A
  • Operating Temperature: -20°C to 150°C (TJ)
