Same model may have multiple batches, images only for reference.

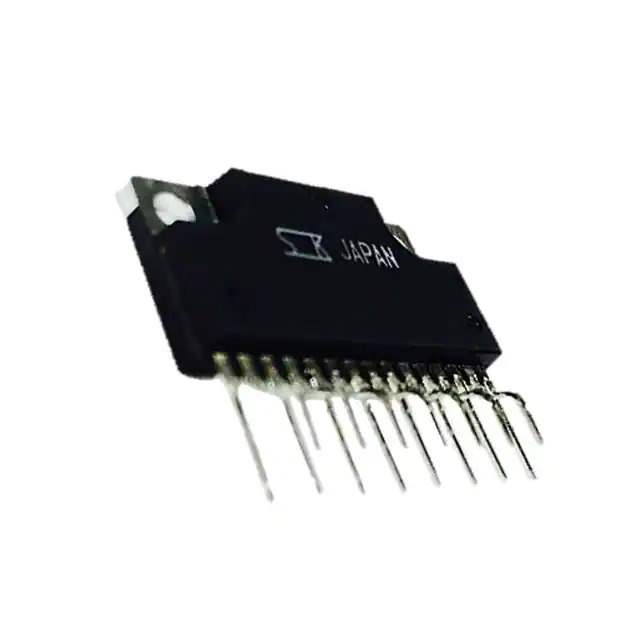

SLA5074 Real Image
Same model may have multiple batches, images only for reference.

SLA5074

Part No SLA5074
Manufacturer Sanken
Catalog FETs - Arrays
Description MOSFET 4N-CH 60V 5A 15-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Sanken
Package Tube
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 4 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 5A
Rds On (Max) @ Id, Vgs 300mOhm @ 3A, 4V
Vgs(th) (Max) @ Id 2V @ 250µA
Input Capacitance (Ciss) (Max) @ Vds 320pF @ 10V
Power - Max 4.8W
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case 15-SIP Exposed Tab, Formed Leads
Supplier Device Package 15-ZIP
Base Product Number SLA50
Standard Package 180 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 668001-SLA5074
Ultra Librarian 3D Model Ultra Librarian SLA5074 CAD Model

Description

The 668001-SLA5074 is a half bridge MOSFET array with four N-channel MOSFETs. It is designed for general purpose applications and features a drain to source voltage (Vdss) of 60V and a continuous drain current (Id) of 5A @ 25°C.

  • Configuration: Half Bridge MOSFET Array
  • Channels: Four N-Channel MOSFETs
  • Applications: General Purpose
  • Vdss: 60V
  • Id @ 25°C: 5A
  • Rds On @ Id, Vgs: 300mOhm @ 3A, 4V
  • Vgs(th) @ Id: 2V @ 250μA
  • Power Dissipation: 4.8W
  • Package: 15-SIP with Exposed Tab
  • Lead Form: Formed Leads
  • Packaging: Tube
  • Package Quantity: 180 pcs
  • Manufacturer: Sanken
  • Series: SLA50
  • Product Category: Discrete Semiconductor Products
  • Product Status: Active
