Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Sanken
Package Tube
Product Status Obsolete
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver
Output Configuration Half Bridge (3)
Interface Logic
Technology IGBT
Applications Home Appliance
Current - Output 20A
Voltage - Supply 13.5V ~ 16.5V
Voltage - Load 600V (Max)
Temperature Range - Operating 125°C (TJ)
Mounting Type Through Hole
Package / Case 33-PowerDIP (1.307", 33.20mm) Exposed Pad
Supplier Device Package 33-PowerDIP LF2552
Base Product Number SCM1245
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 846006-SCM1245MF
Ultra Librarian 3D Model Ultra Librarian SCM1245MF CAD Model

Description

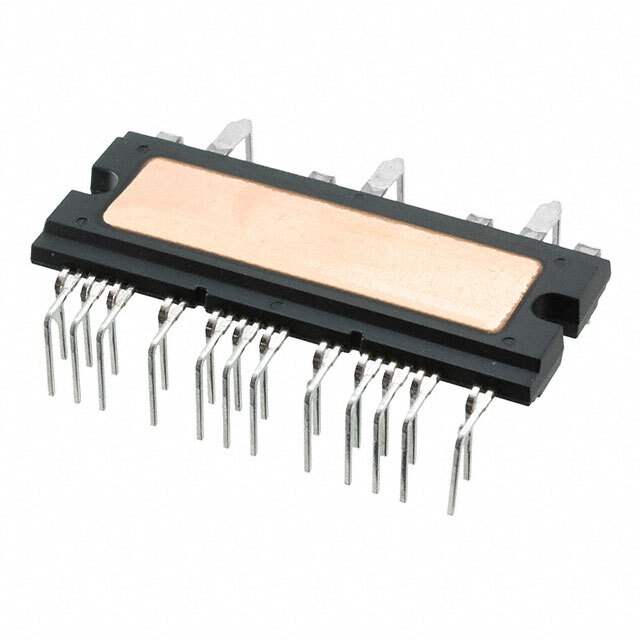

The SCM1245MF is an integrated circuit (IC) designed for power management of motor drivers and controllers by Sanken.

  • Application: Home Appliance
  • Type: IGBT Driver
  • Maximum Output Current: 20A
  • Output Configuration: Half Bridge
  • Maximum Load Voltage: 600V
  • Supply Voltage Range: 13.5V to 16.5V
  • Mounting Type: Through Hole
  • Package: 33-PowerDIP
  • Temperature Range: Up to 125°C
  • Status: Obsolete
