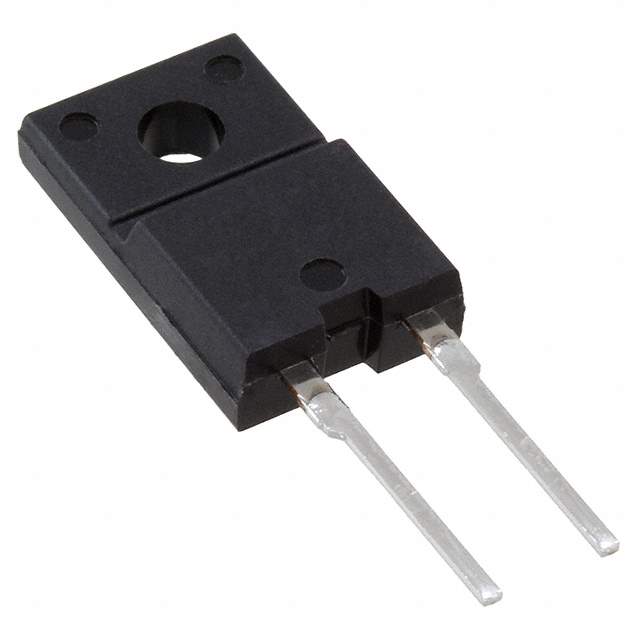

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 980mV @ 10A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 40ns
Current - Reverse Leakage @ Vr 200μA @ 200V
Mounting Style Through Hole
Package TO-220-2 Full Pack
Manufacturer Package TO-220F-2L
Operating Temperature - Junction -40°C ~ 150°C
Win Source Part Number 774633-FML-G22S
Popularity Medium
Supply and Demand Status Limited
Family Name FML-G22S
Introduction Date November 06, 2006
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FML-G22S CAD Model

Description

The FML-G22S is a fast recovery diode manufactured by Sanken.

  • Win Source Part Number: 774633-FML-G22S
  • Package: TO-220-2 full pack
  • Current - Average Rectified (Io): 10A
  • Reverse Recovery Time (trr): 40ns
