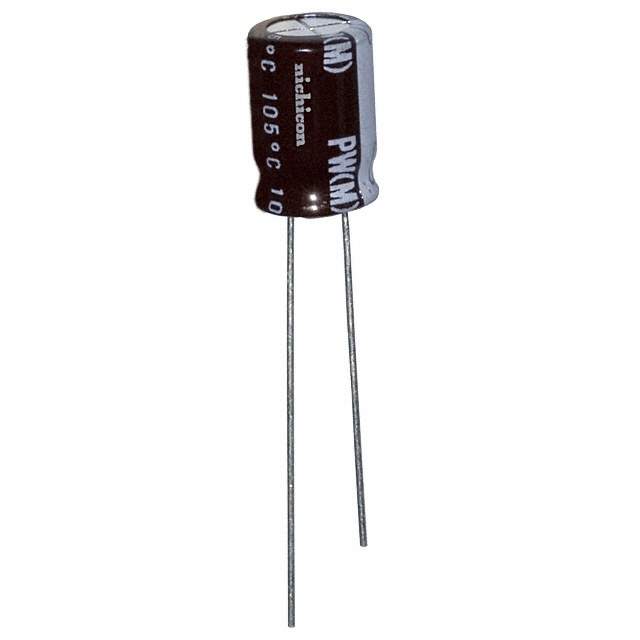

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 360.75 mA @ 120 Hz
Impedance 117 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-1784
Standard Package 3,000
Win Source Part Number 967801-UPW1C331MPD
Ultra Librarian 3D Model Ultra Librarian UPW1C331MPD CAD Model

Description

The Nichicon UPW1C331MPD is a radial, can-type aluminum electrolytic capacitor that belongs to the UPW series from Nichicon.

  • Capacitance: 330 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Impedance: 117 mOhms
  • Ripple Current: 360.75 mA @ 120 Hz
  • Lifetime: 3000 hours @ 105 °C
  • Polarization: Polarized
  • Application: General Purpose
  • Mounting Type: Through Hole
  • Lead Spacing: 0.138" (3.50mm)
