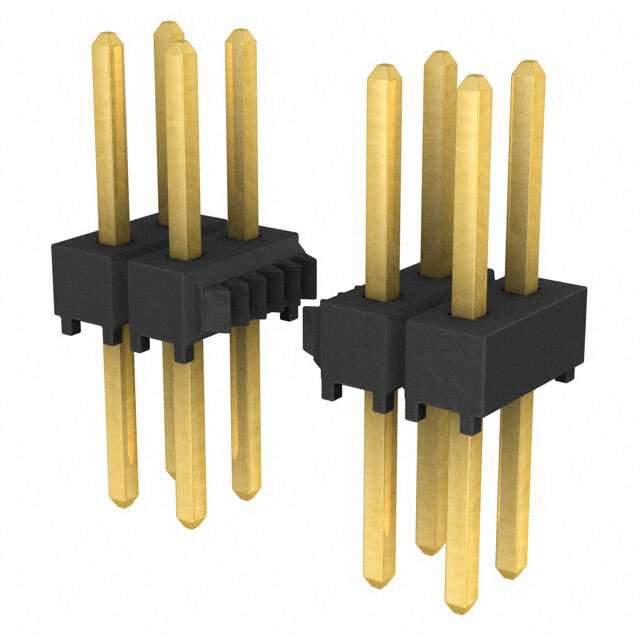

TSW-111-08-G-D

Part No TSW-111-08-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 22POS 2.54MM / Connector Header Through Hole 22 position 0.100" (2.54mm)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSW
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.200" (5.08mm)
Overall Contact Length 0.530" (13.46mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number TSW-111
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1036-11
Standard Package 1
Win Source Part Number 1135129-TSW-111-08-G-D
Ultra Librarian 3D Model Ultra Librarian TSW-111-08-G-D CAD Model

Description

The TSW series from Samtec Inc. offers a 22 position header connector with male pins.

  • Connector Type: Header
  • Positions: 22
  • Rows: 2
  • All Positions Loaded: Yes
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Bulk
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold, 10.0μin (0.25μm)
  • Contact Finish (Post): Gold, 3.00μin (0.076μm)
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Insulation Color: Black
  • Connection Style: Board to Board or Cable
  • Pitch: 0.100” (2.54mm)
  • Row Spacing: 0.100” (2.54mm)
  • Post Contact Length: 0.194” (4.93mm)
  • Mating Contact Length: 0.230” (5.84mm)
  • Overall Contact Length: 0.530” (13.46mm)
  • Insulation Height: 0.100” (2.54mm)
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
