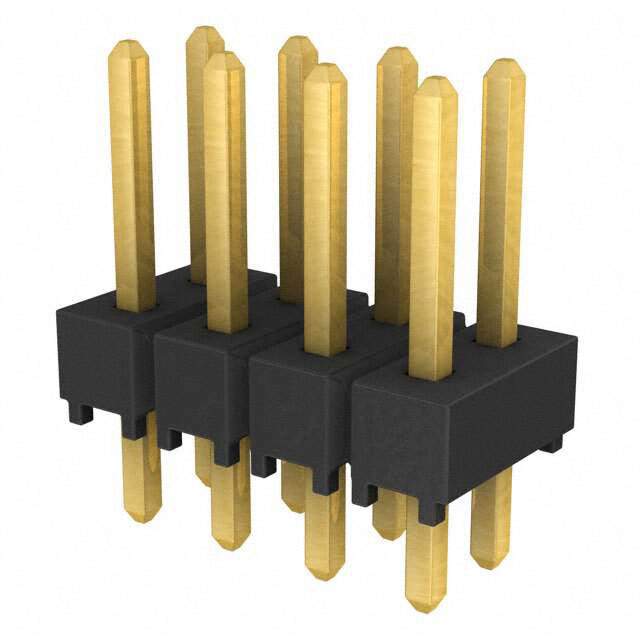

TSW-104-07-G-D

Name: TSW-104-07-G-D
Brand: Samtec Inc.
SKU: 809877
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSW-104-07-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	3.00μin (0.076μm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809880-TSW-104-07-G-D
Ultra Librarian 3D Model	Ultra Librarian TSW-104-07-G-D CAD Model

Description

The TSW-104-07-G-D header connector from Samtec Inc. is a high-quality and reliable choice for your interconnect needs.

Contact Type: Male Pin
Termination: Solder
Pitch: 0.100 inches (2.54mm)
Mounting: Through Hole
Rows: 2
Positions Loaded: 8
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Contact Finish: Gold (10.0μin (0.25μm) for mating, 3.00μin (0.076μm) for post)
Insulation Color: Black
Operating Temperature: -55°C to 125°C
