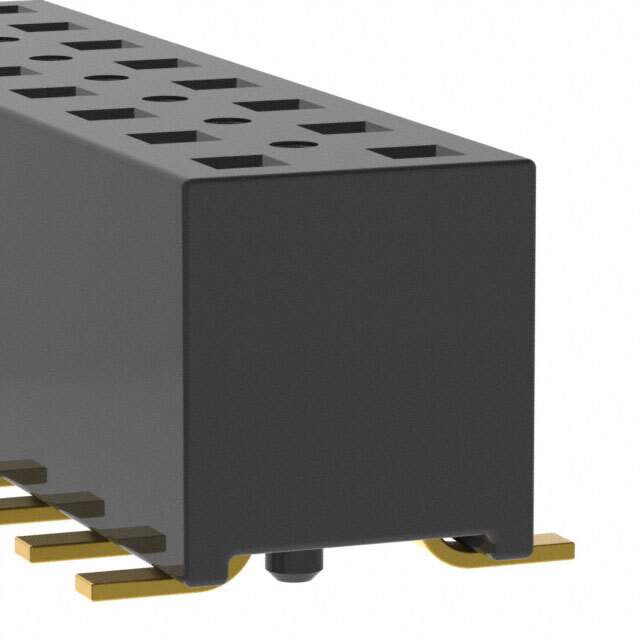

Same model may have multiple batches, images only for reference.

TLE-142-01-G-DV-A

Name: TLE-142-01-G-DV-A
Brand: Samtec Inc.
SKU: 1030839
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TLE-142-01-G-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 84POS 0.079 GOLD SMD / 84 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	TLE
Package	Tube
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	84
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Features	Board Guide
Current Rating (Amps)	3.2A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	TLE-142
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	6
Win Source Part Number	1030839-TLE-142-01-G-DV-A
Ultra Librarian 3D Model	Ultra Librarian TLE-142-01-G-DV-A CAD Model

Description

The Samtec Inc. TLE-142-01-G-DV-A is an electronic component with Win Source Part Number 1030839-TLE-142-01-G-DV-A.

Series: TLE
Number of Positions: 84
Connector Type: Receptacle, Pass Through
Contact Type: Female Socket
Termination: Solder
Fastening Type: Push-Pull
Package: Tube
Contact Material: Phosphor Bronze
Voltage Rating: Not Applicable
MSL Level: 1 (Unlimited)
Current Rating (Amps): 3.2A per Contact
ECCN: EAR99
HTSUS: 8536.69.4040
