Same model may have multiple batches, images only for reference.

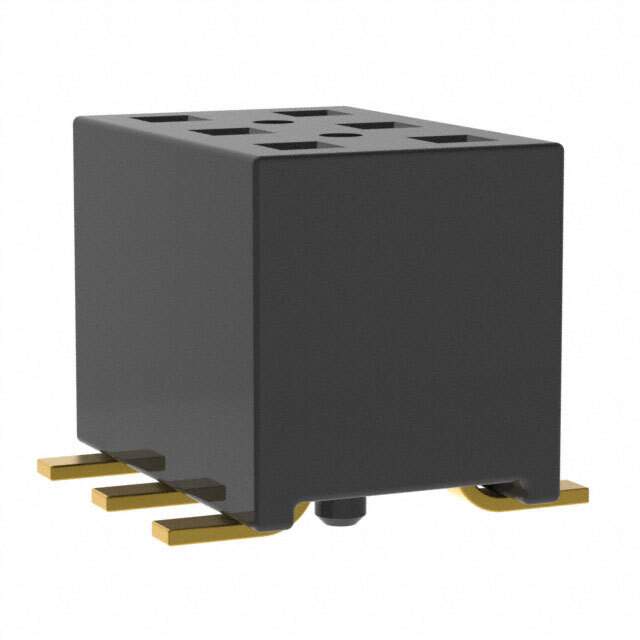

TLE-103-01-G-DV-A-TR Real Image
Same model may have multiple batches, images only for reference.

TLE-103-01-G-DV-A-TR

Part No TLE-103-01-G-DV-A-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 6POS 0.079 GOLD SMD / 6 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series TLE
Package Tape & Reel (TR)
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Gold
Features Board Guide
Current Rating (Amps) 3.2A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number TLE-103
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 575
Win Source Part Number 1099651-TLE-103-01-G-DV-A-TR
Ultra Librarian 3D Model Ultra Librarian TLE-103-01-G-DV-A-TR CAD Model

Description

The TLE series of rectangular connectors from Samtec Inc. is a great solution for board-to-board or cable connections.

  • Series: TLE
  • Connector Type: Rectangular Connector
  • Manufacturer: Samtec Inc.
  • Positions Loaded: 6
  • Rows: Two
  • Pitch: 2.00mm
  • Fastening Type: Push-Pull
  • Maximum Current per Contact: 3.2A
  • Contact Material: Phosphor Bronze
  • Mating Finish: Gold
  • Mating Finish Thickness: 10.0μin
  • Contact Post Finish: Gold
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Packaging: Tape and Reel (TR)
  • Mounting: SMD (SMT)
  • ECCN: EAR99
