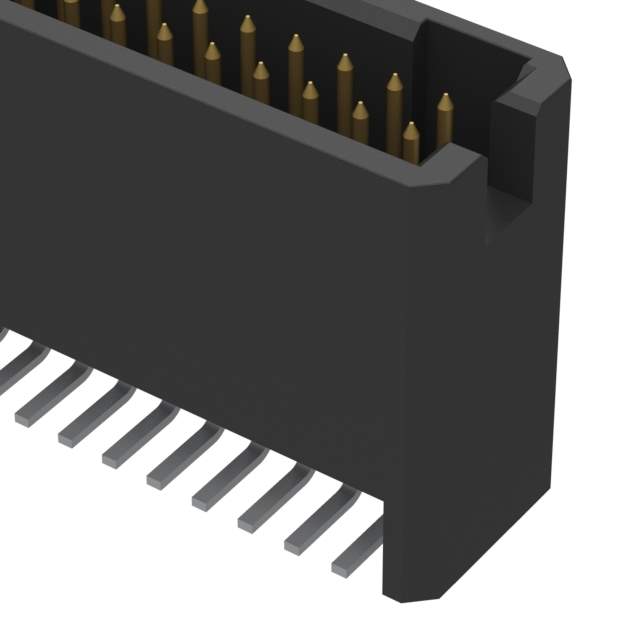

Same model may have multiple batches, images only for reference.

TFC-110-32-F-D

Get a Quote

Part No	TFC-110-32-F-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 X .050 TERMINAL STRIP / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFC
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.139" (3.53mm)
Insulation Height	0.441" (11.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.1A per Contact
Voltage Rating	275VAC
Base Product Number	TFC-110
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	35
Win Source Part Number	998961-TFC-110-32-F-D
Ultra Librarian 3D Model	Ultra Librarian TFC-110-32-F-D CAD Model

Description

The TFC-110-32-F-D is a rectangular connector header with male pins that belong to the Tiger Eye™ TFC series.

Positions: 20
Loaded: All
Pitch: 0.050" (1.27mm)
Finish Mating: Gold
Contact Finish Thickness Mating: 3.00µin (0.076µm)
Contact Finish Post: Tin
Shrouding: Shrouded-4 wall
Row Spacing Mating: 0.050" (1.27mm)
Contact Length Mating: 0.139" (3.53mm)
Insulation Height: 0.441" (11.20mm)
Contact Shape: Square
Operating Temperature: -55°C to 125°C
MSL Level: 1 (unlimited)
Current Rating: 3.1A per contact
HTSUS Code: 8536.69.4040
Manufacturer: Samtec Inc.
Base Product Number: TFC-110
