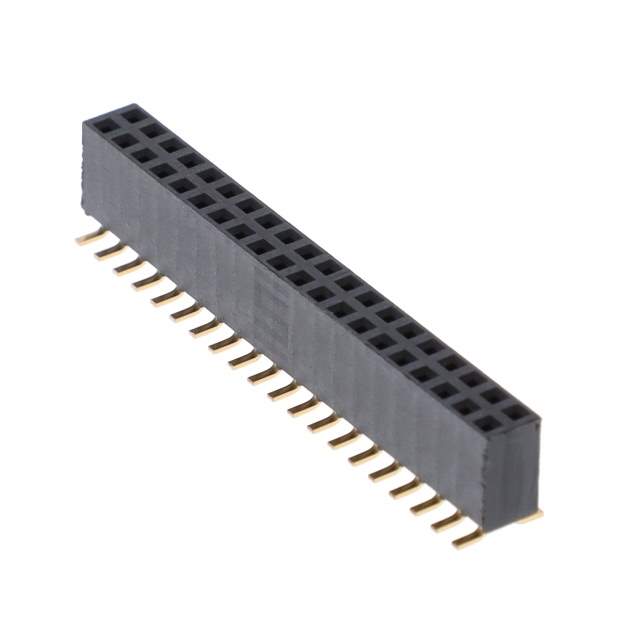

SSW-120-22-G-D-VS

Name: SSW-120-22-G-D-VS
Brand: Samtec Inc.
SKU: 1288087
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-120-22-G-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-120-22-G-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSW-120
Standard Package	11
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288087-SSW-120-22-G-D-VS
Ultra Librarian 3D Model	Ultra Librarian SSW-120-22-G-D-VS CAD Model

Alternative Products

Description

This is a Samtec Inc. rectangular connector that is part of the SSW series.

Connector Type: Receptacle
Positions: 40
Pitch: 0.100" (2.54mm)
Rows: 2
Termination: Solder
Contact Type: Forked
Positions Loaded: All
Fastening Type: Push-Pull
Package: Tube
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold
Contact Finish Thickness (Mating): 20.0µin (0.51µm)
Contact Finish (Post): Gold
Contact Finish Thickness (Post): 3.00µin (0.076µm)
Temperature Range: -55°C to 125°C
Compliance: ROHS3
