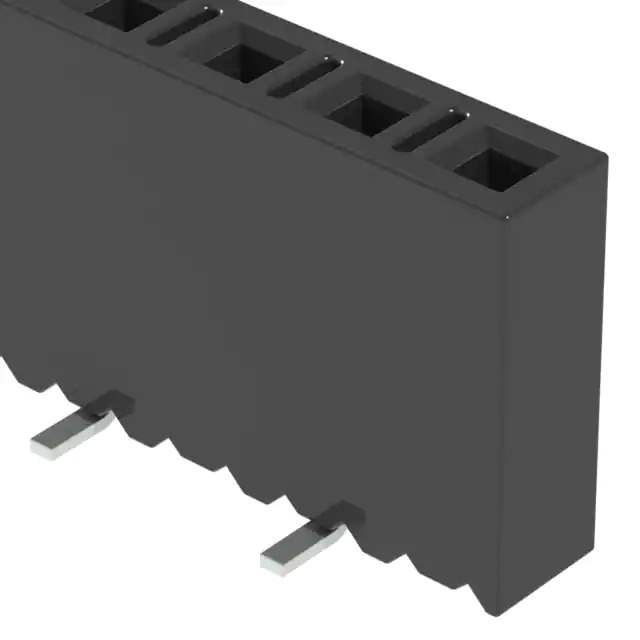

SSM-130-S-SV Real Image
Same model may have multiple batches, images only for reference.

SSM-130-S-SV

Part No SSM-130-S-SV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 30POS 0.1 GOLD SMD / 30 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold
Datasheet
SSM-130-S-SV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Bulk
Product Status Active
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-130
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 897693-SSM-130-S-SV
Ultra Librarian 3D Model Ultra Librarian SSM-130-S-SV CAD Model

Description

The SSM-130-S-SV is a 30-position female socket rectangular connector from Samtec Inc.

  • Connector Type: Receptacle, pass-through
  • Termination: Solder
  • Application: Board-to-board or cable connections
  • Pitch: 0.100" (2.54mm)
  • Positions: 30
  • Contact Material: Phosphor bronze
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Insulation Material: Black liquid crystal polymer (LCP)
  • Insulation Height: 0.290" (7.37mm)
  • Voltage Rating: 405VAC and 572VDC
  • Current Rating: 5.2A per contact
  • Operating Temperature Range: -55°C to 125°C
