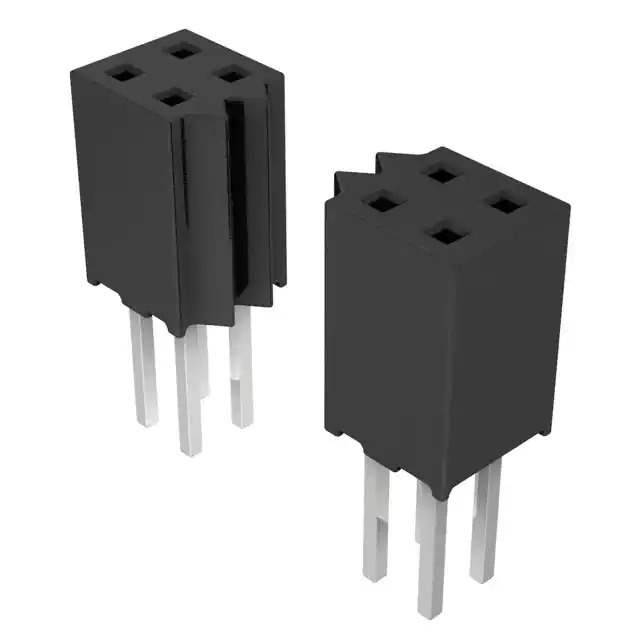

SQT-105-03-L-D Real Image
Same model may have multiple batches, images only for reference.

SQT-105-03-L-D

Part No SQT-105-03-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.079 GOLD PCB / 10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet
SQT-105-03-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQT
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.250" (6.35mm)
Contact Length - Post 0.208" (5.28mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 5.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQT-105
Standard Package 54 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 897283-SQT-105-03-L-D
Ultra Librarian 3D Model Ultra Librarian SQT-105-03-L-D CAD Model

Description

The SQT series from Samtec Inc. offers a reliable and high-performance solution for your connector needs.

  • Part Number: 897283-SQT-105-03-L-D
  • Connector Type: Rectangular Connector
  • Receptacle Type: Receptacle
  • Contact Type: Forked
  • Number of Positions Loaded: 10
  • Number of Rows: 2
  • Fastening Type: Push-Pull
  • Mounting Type: Through Hole
  • Pitch: 0.079 inches (2.00mm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Black Liquid Crystal Polymer (LCP)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 5.1A per contact
  • Flammability Rating: UL94 V-0
  • Package Quantity: 54 pieces
  • Package Type: Tube
