Same model may have multiple batches, images only for reference.

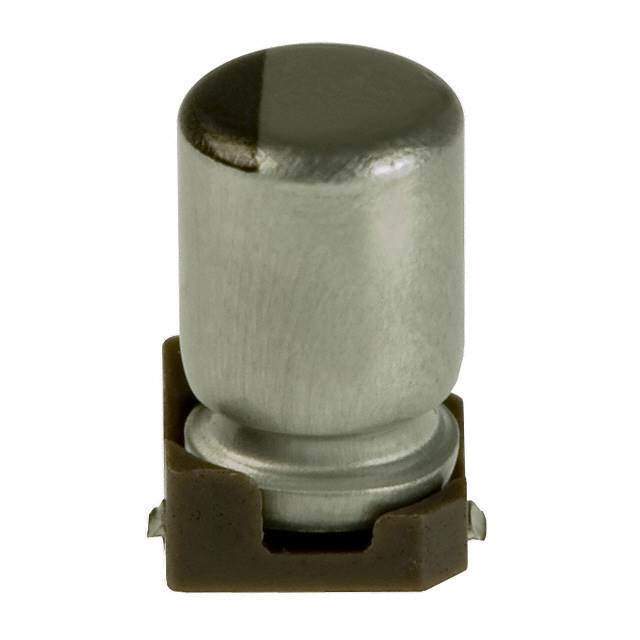

UWX0J220MCL2GB Real Image
Same model may have multiple batches, images only for reference.

UWX0J220MCL2GB

Part No UWX0J220MCL2GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 6.3V SMD / 22 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 21 mA @ 120 Hz
Ripple Current @ High Frequency 31.5 mA @ 10 kHz
Dimension 0.118" Dia (3.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.130" L x 0.130" W (3.30mm x 3.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2083-1,493-2083-2,493-2083-6
Standard Package 2,000
Win Source Part Number 1003836-UWX0J220MCL2GB
Ultra Librarian 3D Model Ultra Librarian UWX0J220MCL2GB CAD Model

Description

The Nichicon UWX0J220MCL2GB aluminum electrolytic capacitor is a high-quality component that is ideal for use in various electronic applications. With a capacitance of 22μF and a voltage rating of 6.3V, it is a versatile component that can be used in a range of applications.

  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • RoHS: Compliant
  • Lead Free: Yes
