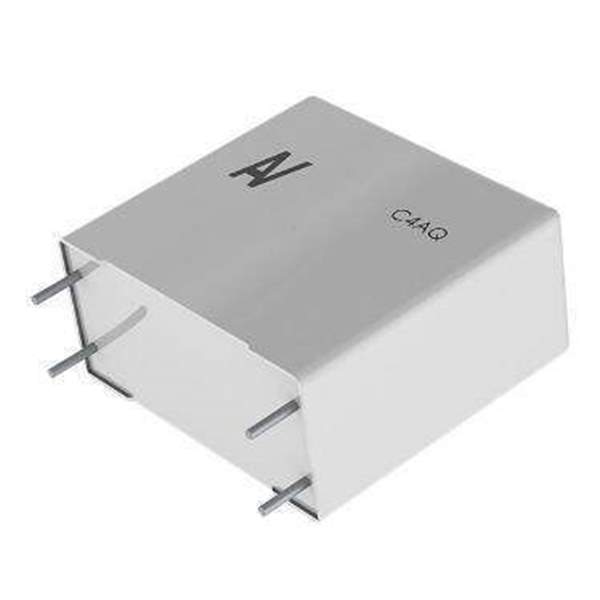

C4AQSBW5220A3NJ KEMET
Same model may have multiple batches, images only for reference.

C4AQSBW5220A3NJ

Part No C4AQSBW5220A3NJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 22UF 5% 1.5KVDC RADIAL
Datasheet
C4AQSBW5220A3NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Packaging  Bulk
Part Status Active
Tolerance ±5%
Voltage Rating - DC 1500V (1.5kV)
Operating Temperature -40°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max) 1.980" (50.30mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Win Source Part Number WS1306656-C4AQSBW5220A3NJ
Ultra Librarian 3D Model Ultra Librarian C4AQSBW5220A3NJ CAD Model

Description

Benefits
• Self-healing
• Low loss
• Low ESL
• Low profile dimensions available
• High ripple current
• High capacitance density
• High contact reliability
• Suitable for high frequency applications
• Automotive Grades (AEC-Q200)
